BimmerFile Technical Report: The BMW M2

There’s so much to talk about the new M2 it was hard to know where to stop in writing our recent review. So instead of going deep into details in our general review, we thought we’d separate some of the technical talk into something different. And by different we mean the most thorough technical look possible. 4300 words and an enormous amount of detailed engineering diagrams that will give you the best look yet of what went into the making of the 2016 BMW M2.

First off, let’s take a broad look at how the F87 M2 compares to the F22 M235i and the current M3 the F80.

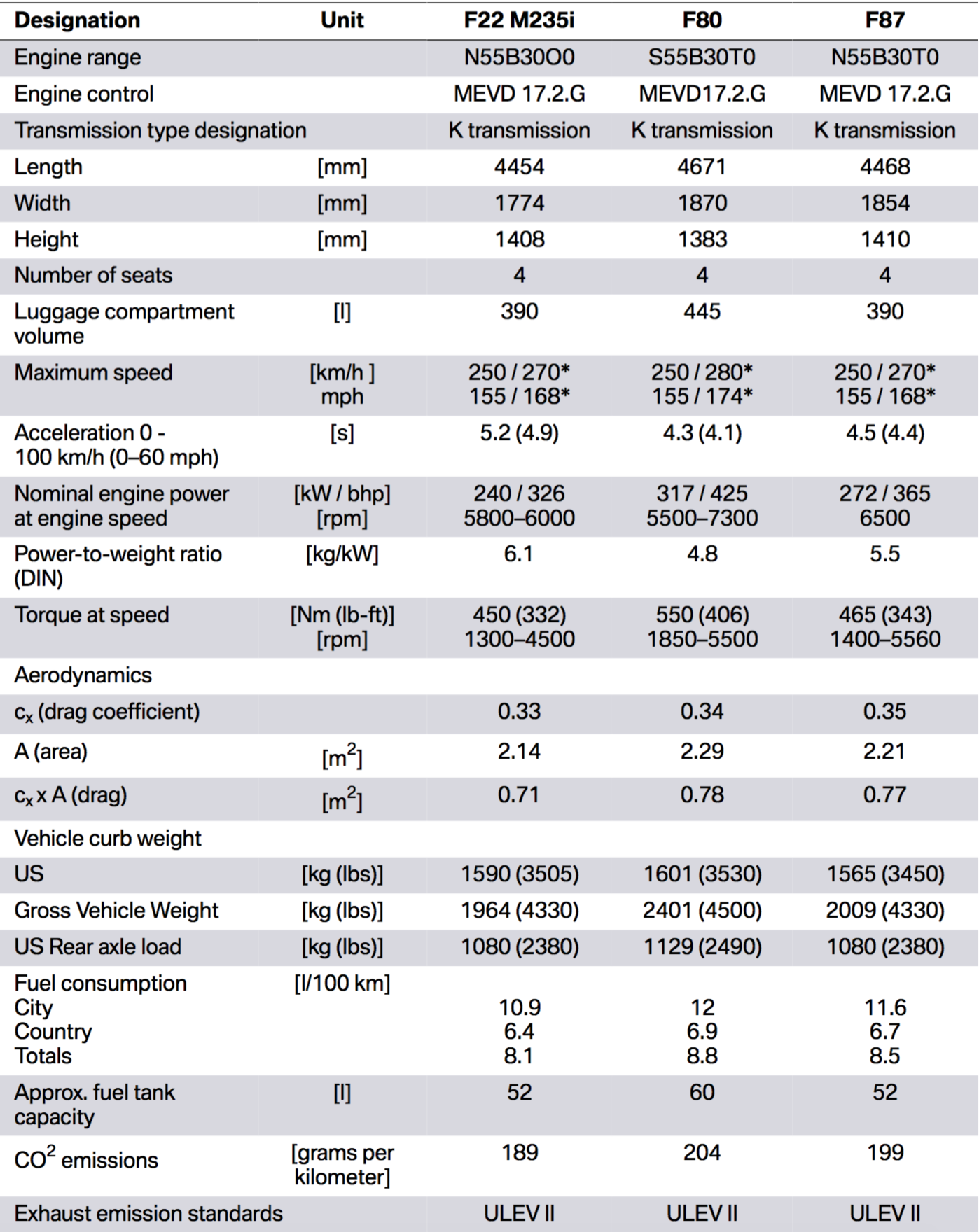

F80 vs F22

It’s worth noting that these weight figures differ slightly from what we’ve seen published elsewhere by BMW. But the one thing that remains consistent is that the M2 doesn’t quite achieve the weight savings that the 1M had nor what the M3/M4 currently achieve.

One small note that points to a longer gestation period, the M2 has an increased gas tank over the M235i. The 1M was saddled with the same sized tank as all other 1 Series, meaning it has woeful range tank to tank. It’s nice to see that longer engineering cycle show up in these type of details.

Now onto the details that make the M2 an M car. Let’s first look at the suspension and the various ways that M modified the F22 and turned it into the F87 M2.

The Suspension

M2 Front Suspension

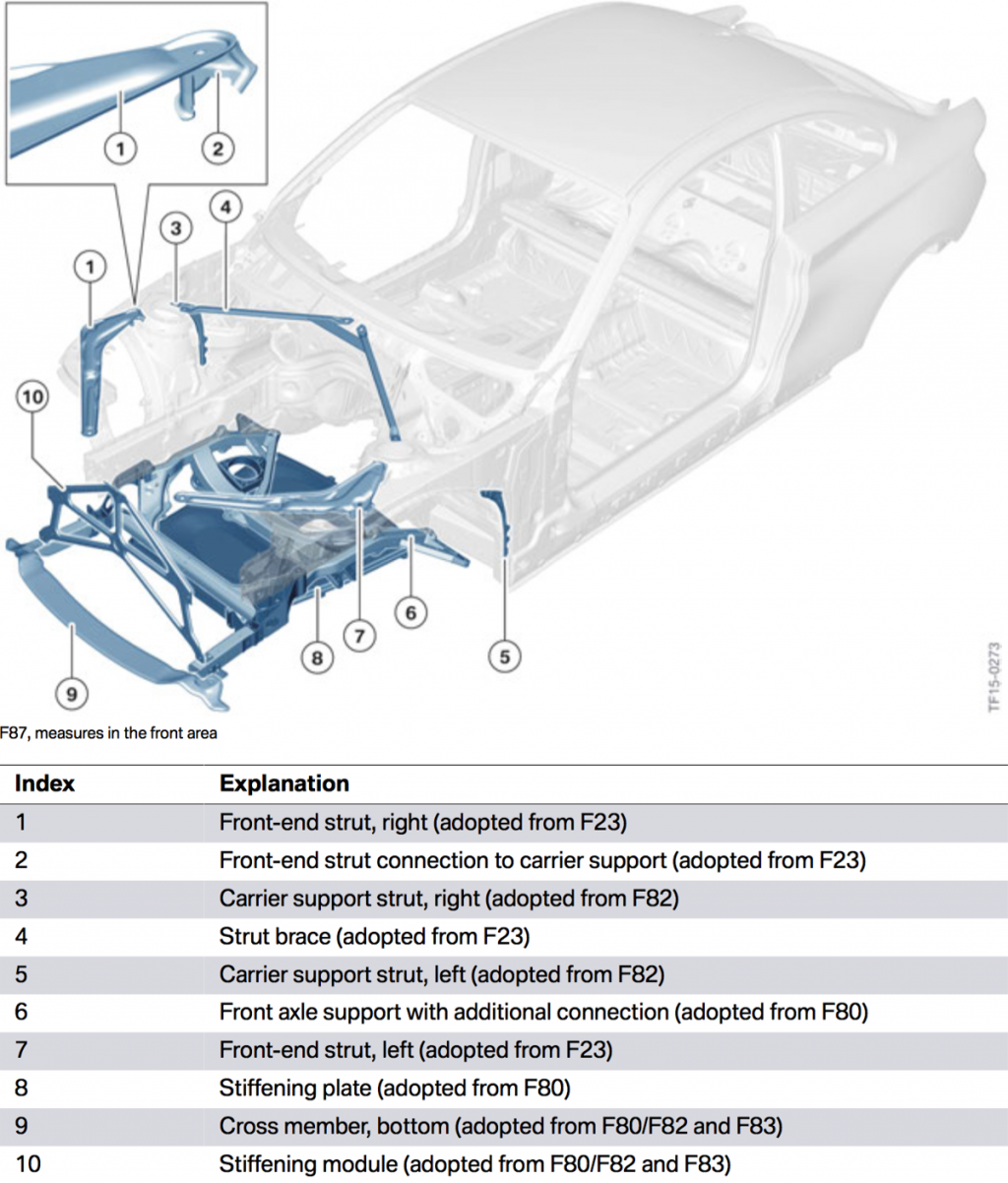

One of the more dramatic areas of change for the M2 over the M235i is the suspension. And of that it’s the front that is radically altered.

BMW M used a number of different parts specifically meant to increase rigidity. A number of individual components throughout the front of the car were adopted from the F23 as well as F80/F82 and F83:

  • Front-end struts
  • Strut brace
  • Front axle support with additional connection in the side sill area
  • Stiffening plate
  • Carrier support struts
  • Cross member, bottom
  • Front-end reinforcements of the engine supports by stiffening module made of aluminum in front of the cooling

M2 sub frame

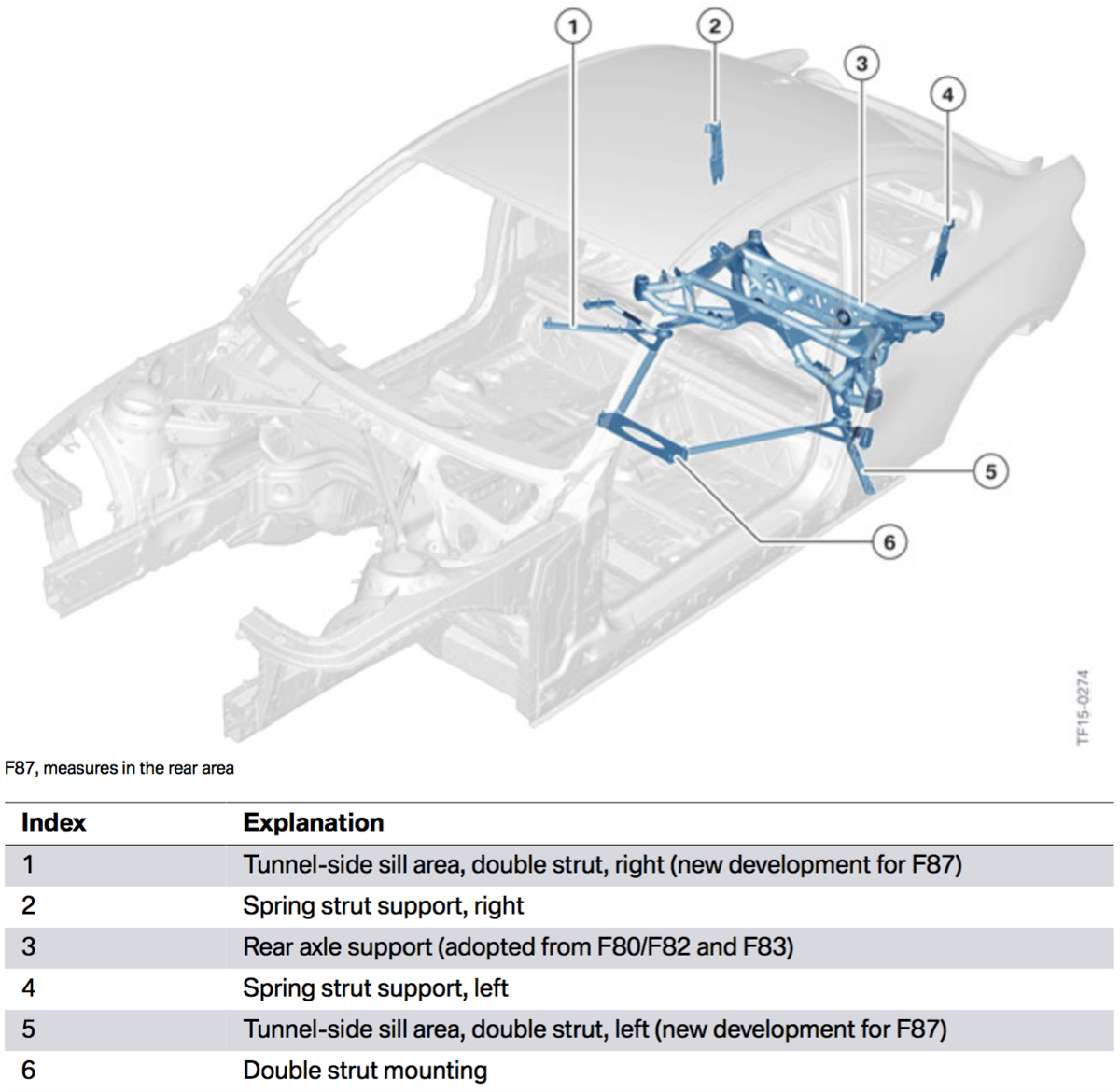

In the rear there was a little less room for improvement. Still M used principles it learned from the new M4 to further enhance rigidity (sensing a trend yet?). Here’s what they did:

  • Direct screw connection of the rear axle support to the body without the use of rubber mounts
  • Double strut assembly in the underfloor area
  • Additional struts in the luggage compartment area to support the spring strut domes

The Body

BMW M2 History_024

The body of the M2 is altered in a couple of key ways over the F22. Up front the fenders are made of aluminum to save weight (and to better distribute it). Other altered parts from the M235i include the Wheel arch cover and side frame on the left and right and the inner C-pillars.

Then there are those lovely hips. Again all new and stretched substantially over the F22 to house all those M4 derived components.

The Underbody

_M2_DSC0084

Elsewhere underneath M focused on underbody paneling for thermal cooling and aero purposes. The underbody is fully paneled partially to reduce and uniformly distribute the lift at the front and rear axles. This helps to increase stability at high speed (as I found out on the front stretch of Laguna Seca).

The underbody panelling was also designed to increase cooling and flow around and through the drive components, chassis and suspension components. All without compromising the overall aero of the M2. The list of parts that are new under the car are substantial:

  • The front engine compartment shielding is new for the F87 BMW M2
  • The left and right underbody panelling has been adopted from the F80 BMW M3
  • The left and right underbody panelling extension at the rear has been newly adapted for the F87 BMW M2
  • The underbody panelling at the rear right and left has been newly adapted for the F87 BMW M2.
The heat insulation for the fuel filler pipe has been newly adapted for the F87 BMW M2
  • The heat insulation for the luggage compartment floor is new for the F87 BMW M2
  • The heat insulation for the rear silencer is new for the F87 BMW M2
  • The heat insulation at the rear of the rear silencer is new for the F87 BMW M2
  • Cooling air routing for the radiator is new
  • Cooling air routing for the external radiator is new
  • Cooling air routing for the engine oil cooler is new

Interior

BMW M2 History_048

Inside M engineers focused on not just making the M2 look unique but also weight savings. Various insulation materials were eliminated, saving 24 lbs compared with the F22 235i. Even the steering wheel was subtly downsized thanks to the use of the F80/F82’s wheel. The M leather steering wheel has a magnesium frame and a radial diameter 8 mm smaller than the one on the M235i. The outer diameter was also reduced by 2 mm. The steering wheel rim is reinforced to 31.6 mm in comparison to the standard version.

The Engine

M2 engine

The BMW M2 is powered by the N55B30T0 and has a output of 365 HP and 343 ft lbs of torque. This revision of the N55 is an iteration on the N55B30O0 engine from the BMW M135i and BMW M235i.

The 1M's N54B30T0 vs the M2's N55B30T0

The 1M’s N54B30T0 vs the M2’s N55B30T0

There’s quite a lot that has been altered in the N55 that’s also in the M2, so it’s hard to know where to start. So let’s begin where the engine gets its start. The air intake system has been subtly altered with a new intake silencer housing. On the N55B30T0 an additional opening is designed into the bottom housing to optimize the power and for dethrottling purposes.

The crankshaft bearing shells have been taken straight from the M3/M4’s S55. The main changes are in the three-material S703C electroplated bearing used as a material combination for the lower bearing shells. For the upper bearing shells a two-material bearing made from aluminium R25 is used.

Oil Supply

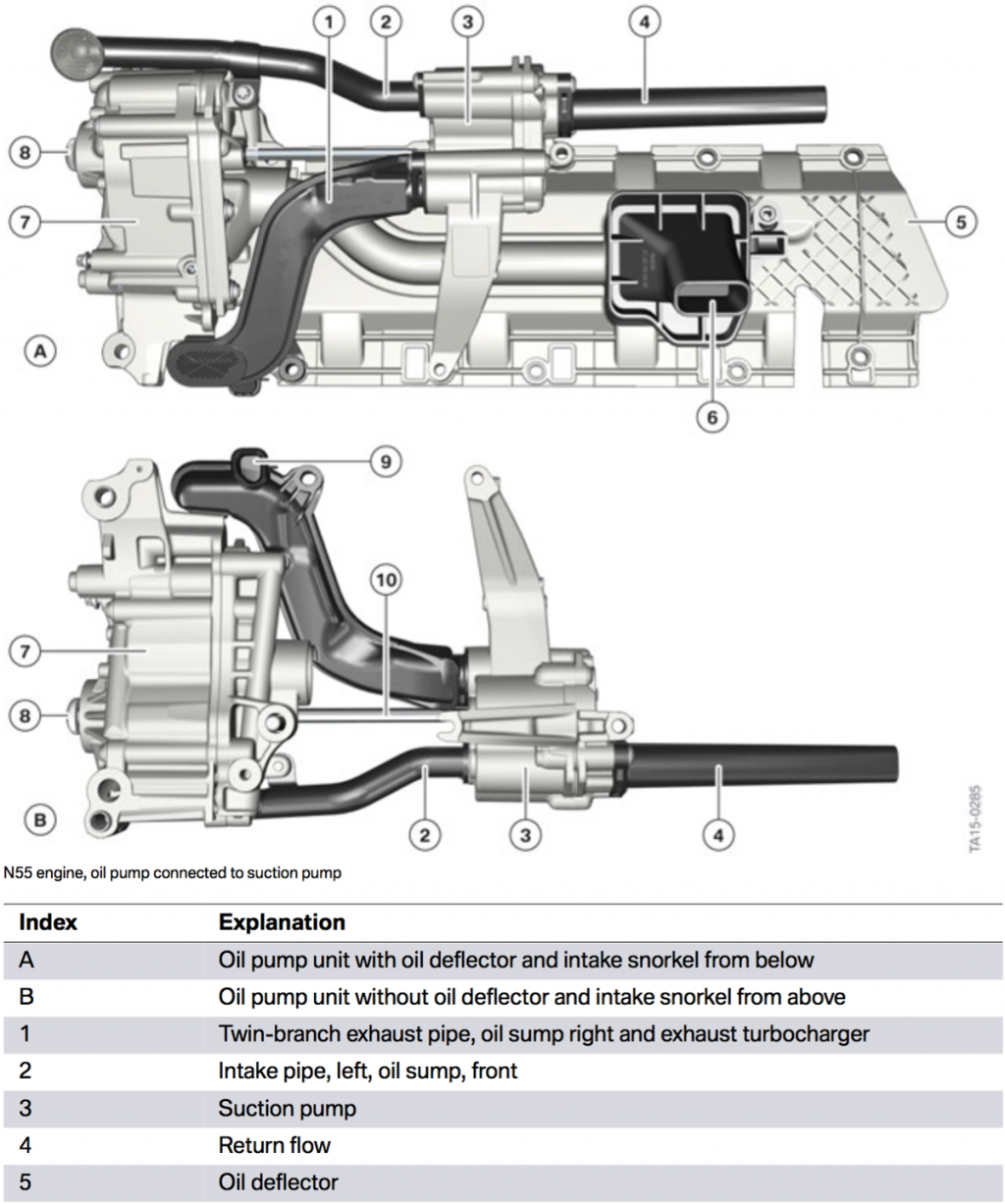

M2 suction pump

Oil supply is another area that M engineers spent time addressing. The oil sump of the N55B30T0 engine is a common part from the M3/M4’s S55 engine and is made of aluminium. Interestingly the oil sump on the 2015 model year cars included a oil sump made from magnesium that allowed for a weight savings of 2.2 lbs. However sometime within the last year BMW quietly changed the oil sump to aluminum, negating the weight savings and likely preserving some money in the process. That aluminum version is what the M2 now has.

In addition to this, the oil supply of the N55B30T0 was designed to be suitable for track duty with the following additions:

  • Additional oil sump cover to restrict oil movements at high acceleration
  • Additional suction pump to return the oil to the rear area of the oil sump during high lateral and longitudinal acceleration
  • Extraction from the exhaust turbocharger in the event of high lateral acceleration

With these changes the oil supply can be guaranteed up to a longitudinal acceleration of 0.61 g. This can even be achieved up to – 1.2 g in the case of deceleration. Also with lateral acceleration (cornering) this structure enables a secure oil supply up to constant 1.2 g.

Due to track requirements BMWM has also installed a secondary oil pump known as the suction pump. This new pump helps increase oil flow by enhancing the return flow of the oil from the exhaust turbocharger and from the front areas of the oil sump back to the rear area of the oil sump.

M2 oil flow

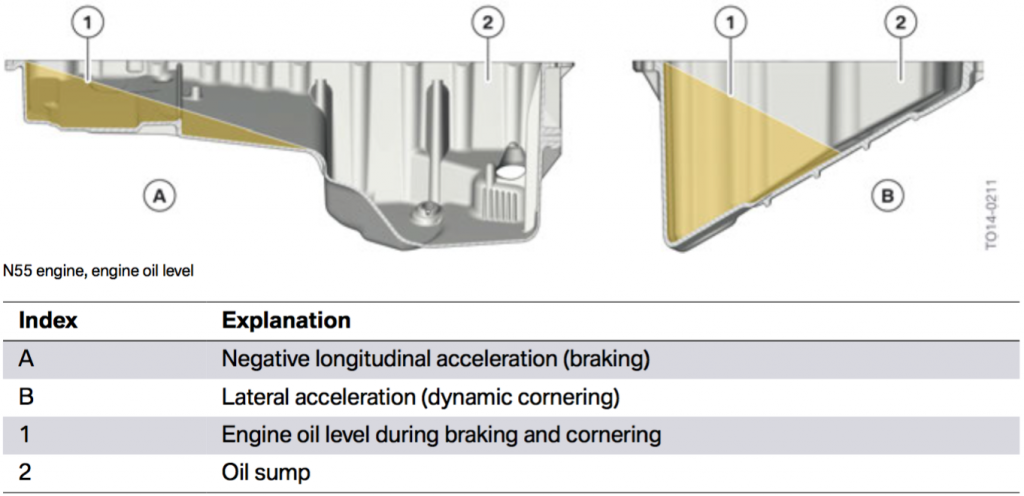

In extreme situations such as track driving, the engine oil is drawn by the suction pump through the suction pipes (2/4) from the front part of the oil sump during longitudinal acceleration, or from the side parts of the oil sump during lateral acceleration. The oil drawn in is delivered via the return flow (6) back to the rear part of the oil sump. There the oil pump can re-absorb the oil via the oil deflector with intake pipe (7) and deliver it to the engine lubrication points.

M2 oil sump

The suction pump is a twin-flow gear pump. The outer chambers of the gear pump serve as suction chambers. In addition to the suction pipes in the front oil sump, the suction pipe in combination with the oil return line for the exhaust turbocharger is also connected at the suction chambers.

Turbocharging

On the M2’s N55B30T0 engine, BMWM are employing the same method of overboost used on the 1M. Within the overboost function torque is increased from 465 Nm/343 lb-ft to 500 Nm/369 lb-ft by a brief increase in the charging pressure of 0.1 bar above the normal charging pressure.

Interestingly the N55B30T0’s blow-off valve is taken from the four cylinder N20 engine.

Exhaust

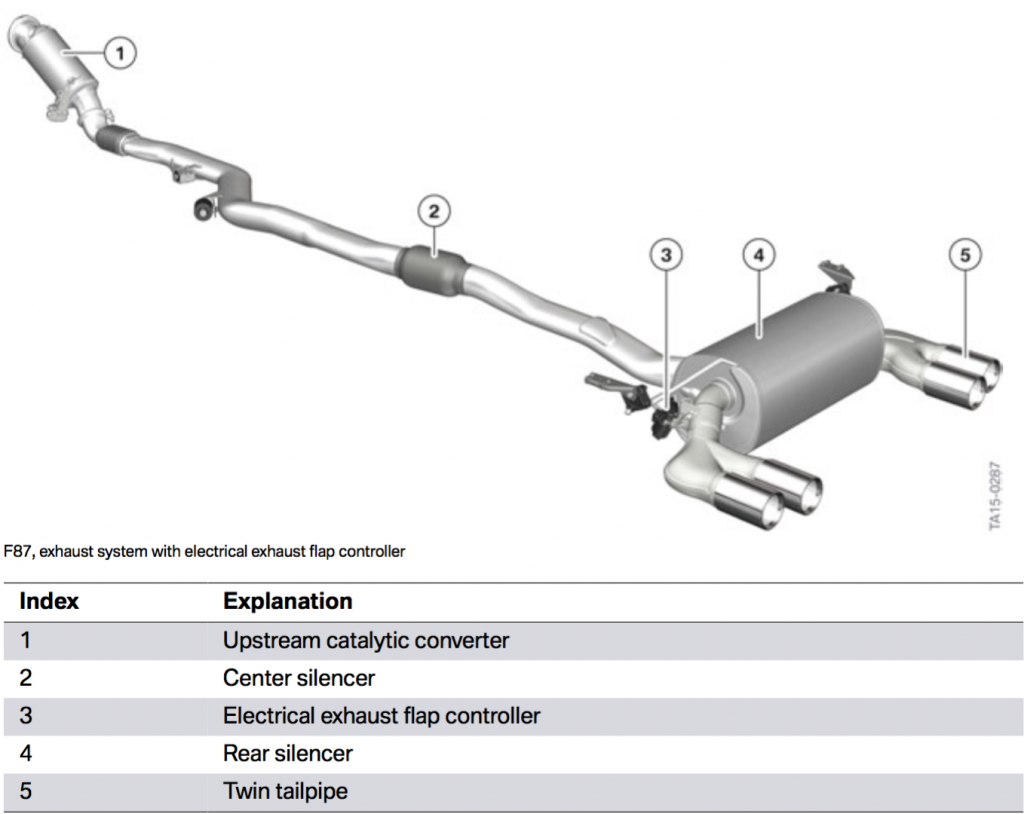

M2 exhaust

The M2’s exhaust is a completely new system that has a number of differences from the M235i:

  • Vacuum operated exhaust flap replaced by electrical exhaust flap
  • Dethrottling of the exhaust system for optimum gas exchange
  • Exhaust routing adapted to F87 BMW M2
  • Sporty exhaust sound combined with ASD to the vehicle occupants

After our drive on the track and around Monterey I can confirm that the sound of the exhaust is both more aggressive and full sounding than the M235i. The exhaust flap is closed at idle, in the lower speed range and nearly of the time when the car’s in COMFORT mode (the exception being under heavy load).

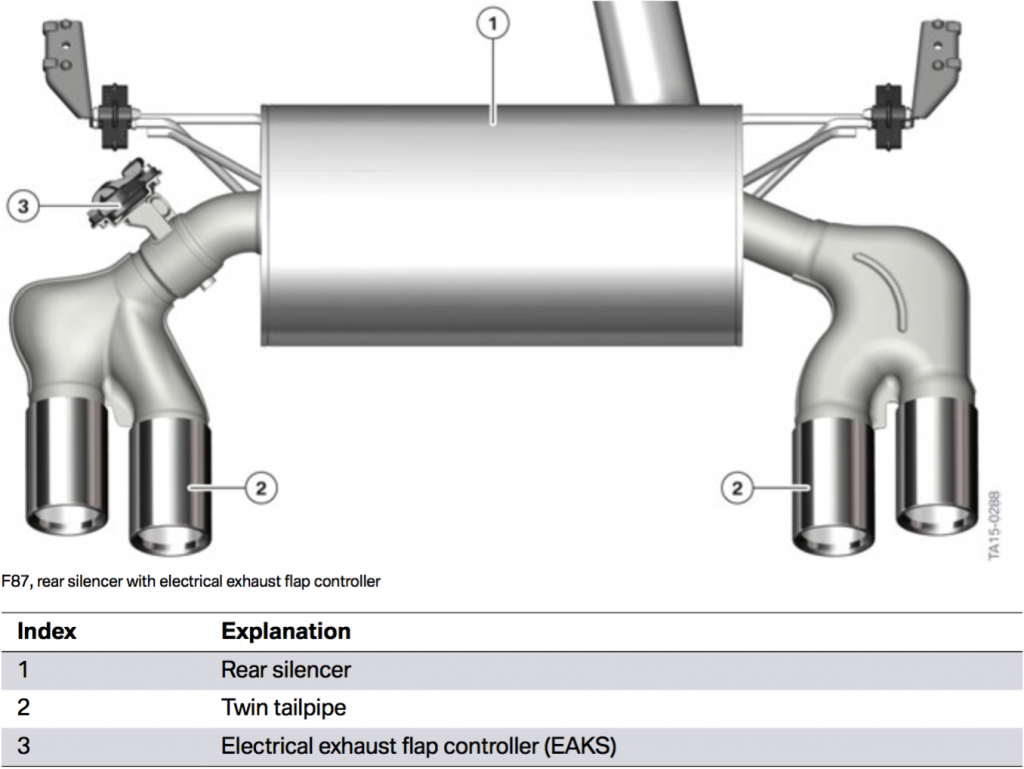

M2 exhaust flap

In SPORT and SPORT+ positions, the exhaust flap is fully open when the engine is idling while the vehicle is stationary and in the lower gears.

Interestingly in the the higher gears, the exhaust flap is closed in the critical ranges. The same applies in the upper engine speed ranges depending on the load.

Cooling

M2 cooling

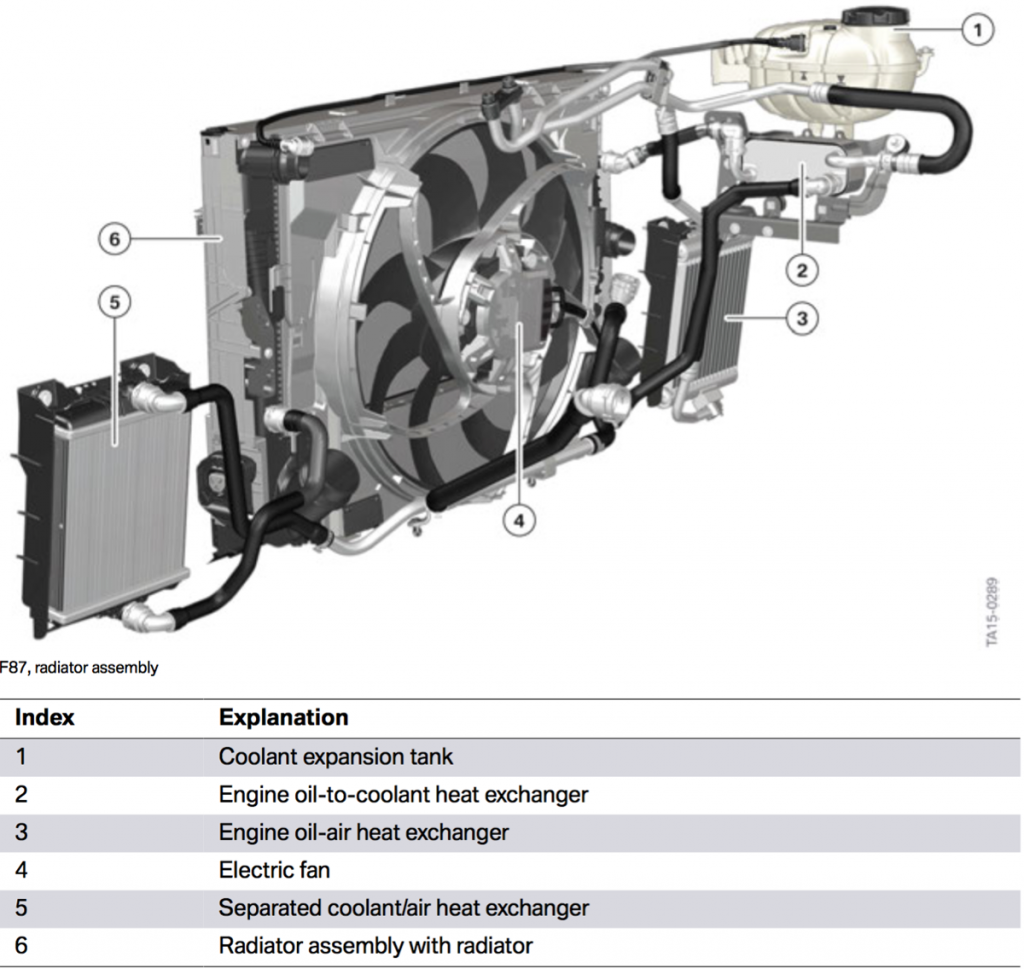

With the modern high output turbocharged engine cooling is critical because BMWM have opted for an additional engine oil-air heat exchanger at the front right. An engine oil-coolant heat exchanger is installed under the coolant expansion tank supported by a 850 W electric fan.

An additional electrical 50 W coolant pump circulates the coolant from the external coolant-air heat exchanger via the engine oil-coolant heat exchanger back to the radiator. It’s a mouthful but it did the trick on a warm day at Laguna Seca where we had the M2 on the track for 8 hours on and off.

All other parts of the cooling system are identical to the M235i’s N55B30O0 engine.

Engine electrical system

The M2 uses the same spark plug as found in the M3 and M4’s S55 engine. The ignition wiring harness was also adopted from the S55 engine. All other components in the area of the engine electrical system of the N55B30T0 engine are identical to those of the N55B30O0 engine.

Transmission

BMW M2 Coupe_121

The standard manual gearbox is an adapted K-transmission, which is found in several BMW “Series” production vehicles and the 1M and M3 and M4. The following components were already adapted in the F80/F82 and F83:

  • Weight reduction compared with predecessor gearbox
  • Smaller size and thus lower weight
  • Improvement of the shifting comfort thanks to use of new type of carbon friction lining at the synchronization units
  • Reduction of noise level
  • Increased efficiency due to dry sump lubrication (“churning” in the oil is prevented, with specifically designed oil ducts). This made it possible to reduce heat generation to such an extent that external cooling is no longer required

M2 transmission

Engine speed adaptation (aka rev matching) is standard with the manual gearbox used in F87 BMW M2. Some will look at this as a further computerization of the driving experience. While it’s true it does make it easier to drive the manual M2 with more finesse, it also allows more focus on the track and a bit more theatre. Granted you don’t get the satisfaction of the heel-to-toe but it’s rather addicting given the M2’s aggressive exhaust.

The engine speed adaptation includes the following components and functions:

  • New gear sensor detects the gearshift request by the x-y-axis and communicates directly with the engine control unit
  • The clutch switch has two stages and communicates directly with the DME
  • Engine speed adaptation characteristic corresponds to the selected driving mode
  • There is no reverse gear switch since detection takes place by a gear sensor

If you want to get very technical, this is a different system than the one used in the F10 BMW M5 in a couple areas:

  • There is no engine speed recording by the synchronization unit
  • Detection of the transmission input speed took place at a gear wheel (constant gear) in the transmission. The transmission ratio has to be calculated from the wheel speed (calculated back to transmission output speed) and transmission input speed

The gearshift lever and gearshift fork used in the F87 BMW M2 are identical with the parts from the F80, F82 and F83 with manual gearbox. In addition, a double-disc clutch in combination with a dual-mass flywheel is used for the manual gearbox. The operating principle of the clutch is identical to the double-disc clutch systems already used.

M double-clutch transmission (M DKG) with Drivelogic

BMW M2 Coupe_123

The GS7D36BG M DKG with Drivelogic is one of the M2’s only options. The double-clutch transmission used in the new F87 BMW M2 is technically identical to the double-clutch transmission in the F80, F82 and F83. The M double-clutch transmission with Drivelogic (GS7D36SG) was used for the first time in the E9X BMW M3 with the wonderful S65B40 V8 engine.

The Drivelogic system matched to the M double-clutch transmission provides different driving programs based on COMFORT/SPORT and SPORT+.

In automatic D mode with the driving experience switch in COMFORT position, upshifts and downshifts take place early and with reduced shift intensity. In driving program D with the driving experience switch in SPORT+ position, the gear shifts take place at higher engine speeds and are more dynamic. The automatic engine speed adaptation in the driving program D SPORT+ makes downshifts even more dynamic. In all three modes, the shift points and shift dynamics, among other things, are influenced by the accelerator pedal position: The further the accelerator pedal is pressed down, the later and more dynamic the gear shifts. In sequential mode, the driver determines the shift point. Only the dynamic characteristics of gearshifts are influenced in the driving programs S COMFORT to S SPORT+.

Launch Control

BMW M2 Coupe_014

Launch Control is a concept that has been around for quite some time. First seen in race cars (F1 for instance), launch control enables optimal acceleration when driving off on a smooth road.

During the first 5000 km (3100 miles) the launch control should generally not be used to ensure proper break-in.

BMW M2 Coupe_061

  • The Launch Control shifts up automatically up to the maximum speed using the shortest possible shift times and performance-optimized shift points. This takes place as long as the driver keeps the accelerator pedal fully depressed and a time limit of 22 s for acceleration is not exceeded
  • The start flag in the instrument cluster remains active

Automatic deactivation will occur if the driver leaves the accelerator pedal full load range during acceleration or the acceleration phase reaches a duration of 22 s.

If one of these pre-configuration conditions is not met, it is not possible to activate the Launch Control.

Also at excessive transmission oil temperature (e.g. repeat Launch Control or race-like start), activation is blocked until temperatures lower.

Active M Differential

M2 rear diff

This electronically/electromechanically controlled rear axle differential lock was developed especially for the F10 BMW M5 and is also used in the F80/F82/F83 and in the F87 BMW M2.

On the F87 BMW M2, the screw connection to the drive shaft is modified in comparison with the F80/F82/F83. It was necessary to adapt this component because a conventional drive shaft is installed in the F87 BMW M2, in contrast to the F80/F82/F83 which have the rather exotic CFRP driveshaft.

The gear ratio of the rear axle differential is 3.462:1.

This M rear axle differential II can be identified by an aluminium oil sump mounted from below and an externally visible electric motor.

The lock is a demand-controlled rear-axle differential lock which is active in the following situations:

  • Acceleration
  • Differential speed at the rear axle for straight-ahead driving under tension due to various coefficients of friction, left/right
  • Dynamic cornering tensioned
  • Power oversteer (drifting)
  • Stabilization in coasting/overrun mode

As is typical for BMW M vehicles, the output shafts have a hollow design. In the F87, they transmit a torque of up to 6500 Nm. In the same way as in the F80/F82 and F83, the F87 has hollow-bored trunnion mounts.

The wheel flanges is another area where BMWM reduced weight. Less material was used at locations subject to little stress and more material at heavily stressed locations.

These measures made it possible to achieve a weight saving of approx. 1.13 kg (2.8 lbs) in the new F87 compared with the E82.

The Chassis & Steering

M2_chassis

As we’ve reported previously on BF, the chassis and suspension are based on the technology of the F80 BMW M3.

M2_steering-stats-1new

In many ways the M2 is more of a product of the M4 than a successor to the 1M. In the data above you can clearly see how the rear track and steering ratio in particular are taken directly from the M4. This results in a car with a slightly more relaxed steering ratio and (in our opinion) one that isn’t quite as lively. The upside is that the M2 is a more confident car at the limit and benefits from the improved dynamics of the M4’s suspension.

M2 front suspension

The front axle is based on the M two-joint spring strut front axle of the E9x M3 that’s also found in F80/F82 and F83. All components and bearings are new or adapted for M-specific use. As a typical M feature, the M front axle support is reinforced with a stiffening plate and was largely adopted from F80/F82 and F83.

The following parts were adapted on the front axle for the F87 BMW M2:

  • Support bearing
  • Conventional gas-pressure shock absorbers (from F80/F82 and F83) with F87 BMW M2-specific tuning
  • Coil springs (from F80/F82 and F83) The following components are new on the front axle for the F87 BMW M2:
  • Anti-roll bar
  • Engine support, right

The guide of the wheel for compression and steering is effected by the wishbone, the tension strut, the spring strut and the tie rod.

For increased precision the power transmission is effected from the swivel bearing to the front axle guide by ball joints with no play. In order to also guarantee this in a longitudinal direction, the chassis and suspension forces are transmitted by specially developed elastomer bearings for the F87 BMW M2 by the tension struts to the front axle support.

The stiffening plate and the additional screw connections of the axle support and the side sills also ensure an increase in the transverse rigidity of the front of the vehicle by approximately 30 %.

The connection between the spring strut and the swivel bearing was achieved by a clamp connection in the same way as on the E82 M and E9x M3, as well as F80/F82 and F83.

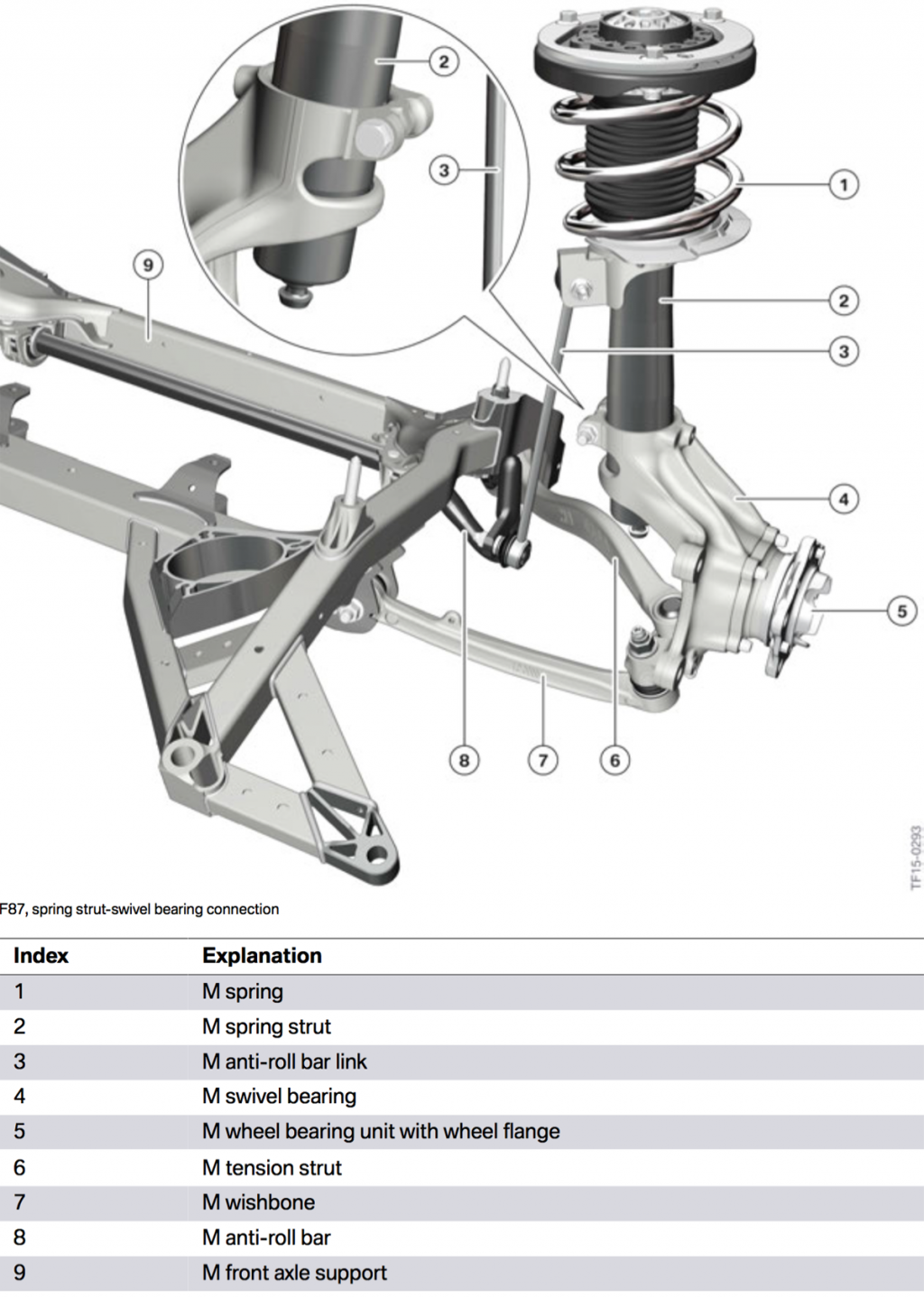

M2 front suspension detail

The suspension is one of the key areas that BMWM engineers looked to reduce weight for the M2. The wishbone, wheel carrier, axle support and the stiffening plate are all manufactured in an aluminum. Further weight savings were achieved with the design of the aluminum spring strut, as well as the tubular design of the anti-roll bar like in the E9x M3.

The front axle was specifically designed in conjunction with a new variation of the Michelin Super Sport tires which were created for the F87 BMW M2.

Steering

M2 steering

Given BMW’s need to reduce emissions every way it can, the M2 features a rack-and-pinion steering with electrical steering assistance “M Servotronic based on an EPS”. While the system was adopted from the F80/F82 and F83, based on our time with the car, there’s a bit more feedback and transparency than in those cars. While it doesn’t come close to the 1M’s level of feedback or transparency (or any other previous M3) this is likely BMWM’s best EPS system to date.

m2 variable steering

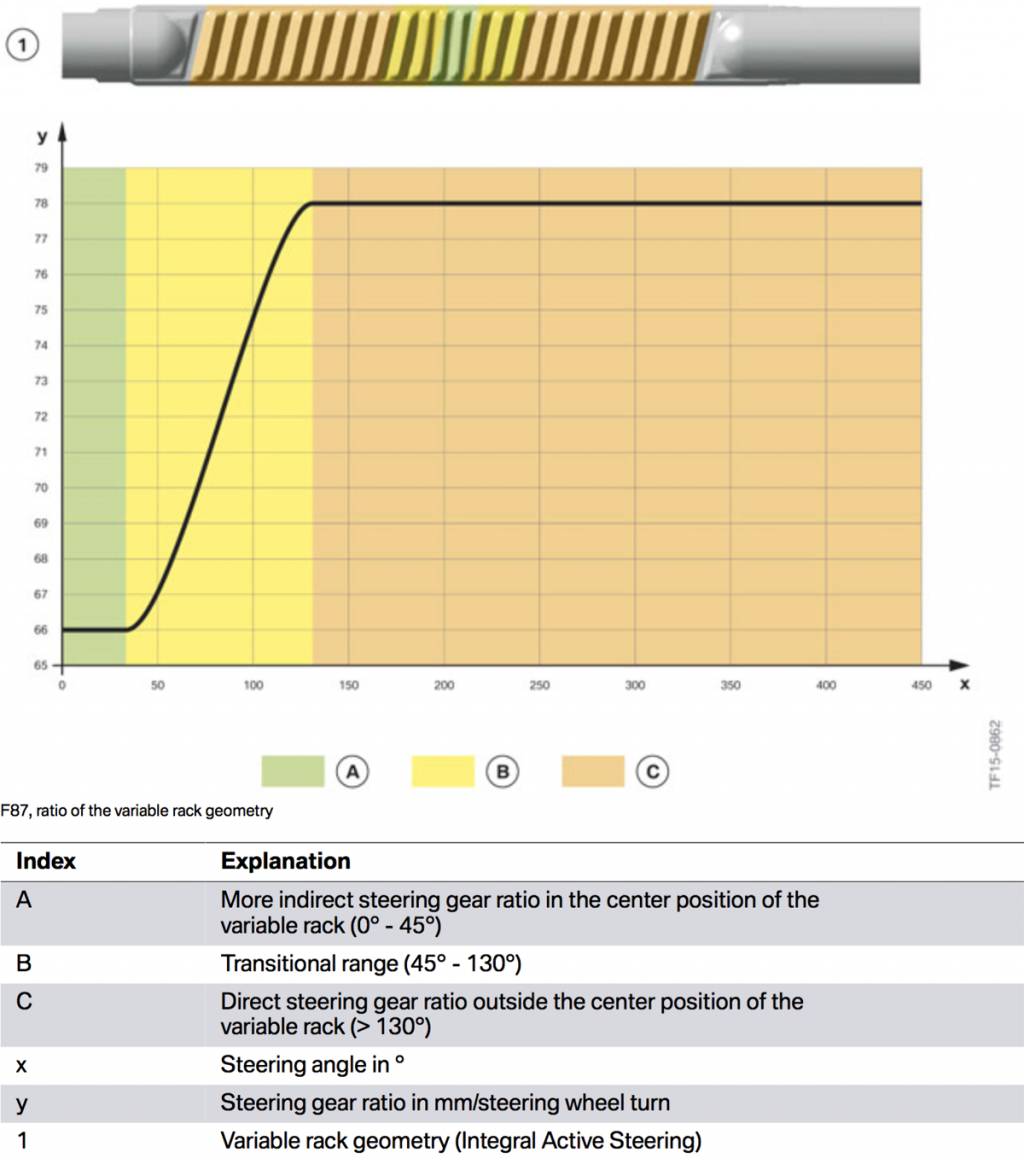

The variable steering gear ratio is implemented through the stroke-dependent gear geometry of the rack. Around the center position of the steering gear, the steering system behaves accurately with steady directional stability. As the steering angle moves away from the center position, the ratio becomes increasingly more direct.

The Servotronic function known from conventional hydraulic steering systems is also used in the M Servotronic (EPS) and is installed in the F87 BMW M2 as standard. It is a M Servotronic, which functions according to the same operating principle as in production vehicles. 2 steering characteristics (COMFORT, SPORT) can be selected by a push button operation by the driving experience switch on the center console.

The BMW M2 & Carmel Valley Rd - a match made in heaven.

The BMW M2 & Carmel Valley Rd – a match made in heaven.

How does BMW create feel through data? The steering angle information in the F87 BMW M2 is not recorded by the Electronic Power Steering (EPS) and not via a separate sensor on the steering wheel, but is instead calculated back for the steering wheel based on the motor position angle of the EPS motor. Pretty incredible when you consider that everything you feel in your hand is a calculation.

The EPS transmits the position of the rack to the ICM control unit via FlexRay. During this process, the EPS calculates the absolute position of the rack based on the current motor position of the EPS motor and the number of complete revolutions performed by the motor starting from the zero position (straight-ahead driving position).

Taking this position as the starting point, the ICM control unit determines the wheel-specific steering angle among other things using the stored ratio parameters (rack to wheel-specific steering angle) and transmits this via FlexRay. This wheel-specific steering angle is used by the DSC among other things as a reference variable for internal control functions.

The Rear Axle

M2 rear suspension sub

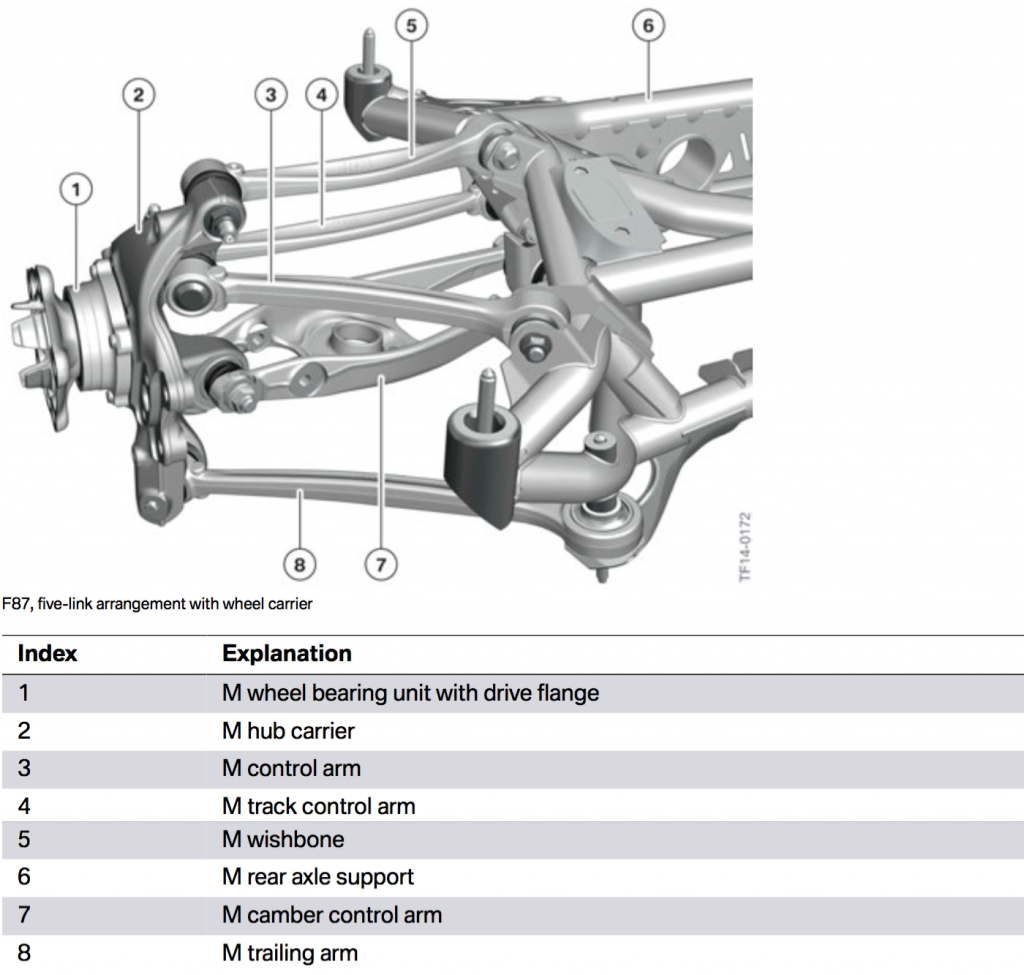

All trailing arms and also the wheel carrier are manufactured in forged aluminum. This reduces the unsprung masses of the components responsible for wheel guidance.

M2 rear suspension 2

The rear axle support itself is made from steel pipe which is similar to a steel pipe grid frame. This design is characterized by maximum rigidity and minimal weight. Like other recent M cars, the rear axle support is fixed to the body without a bearing. This fixed screw connection directly to the body ensures an optimized wheel guide and thus enhanced directional stability. In addition, through the use of diagonal struts a direct transmission of the longitudinal forces applied during braking to the body structure was achieved.

M2 rear axle

Further weight savings were achieved by designing the spring strut in aluminum, as in the E9x M3. The rear axle was designed particularly taking into account the new Michelin Super Sports, which again were newly developed for the F87 BMW M2.

Brakes

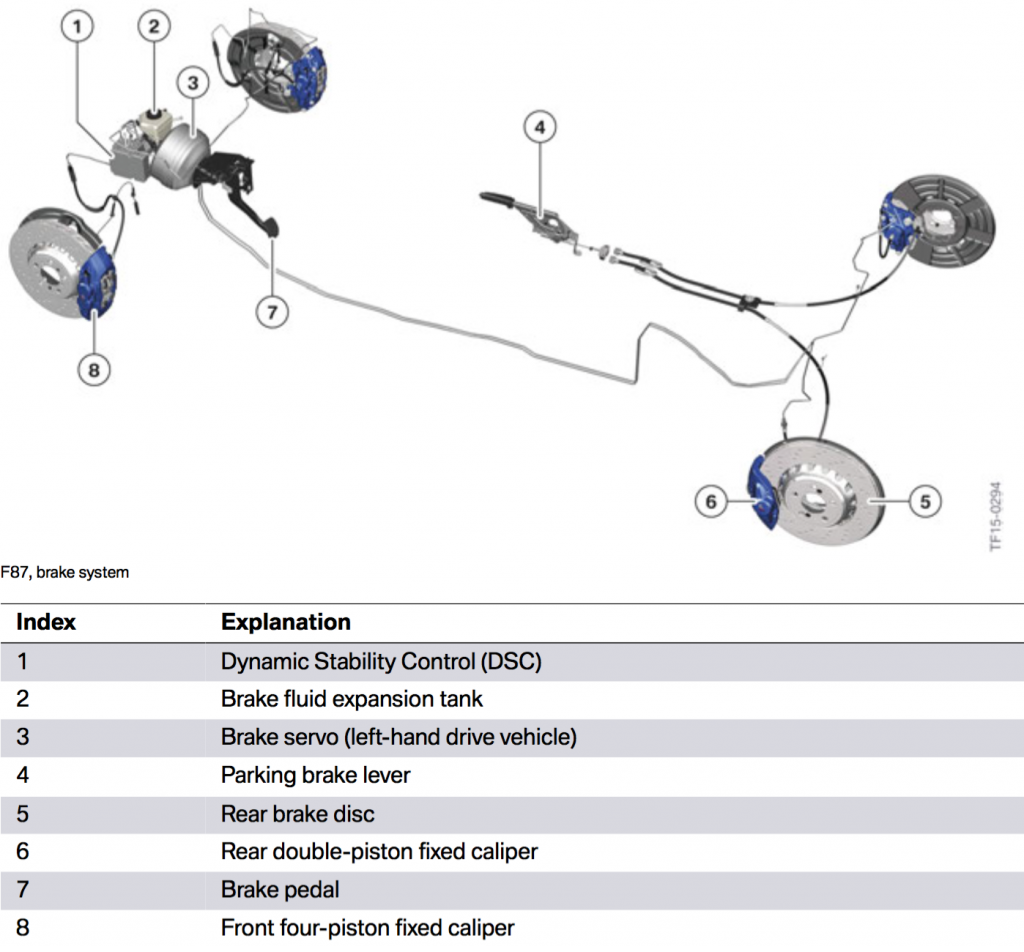

M2 braking system

The brake system of the F87 BMW M2 is largely based on the M compound brake from the F80/F82 and F83 (the exception being the parking brake cable). The front brake has been adopted completely from the F80/F82 and F83. It is a large perforated M compound brake disc combined with a four-piston fixed caliper. All brake calipers are the now traditional M blue with a colored M logo regardless of the exterior vehicle color. The rear brake has also been adopted completely from the F80/F82 and F83 and is a double-piston fixed caliper.

Wheels

M2 wheel comparison

M Dynamics

M2__W5A8833

The M-specific setup of the driving dynamics (longitudinal and transverse) took place, among other things, on the Nordschleife of the Nürburgring. The main criteria according to BMWM were handling and the lap times.

Integrated Chassis Management (ICM) is the transverse dynamics system network. This control unit coordinates the interaction between the M Servotronic (EPS), DSC, engine control, M DKG and the regulated rear axle differential lock (GHAS). Longitudinal dynamics management is performed by the Dynamic Stability Control DSC. The Dynamic Stability Control DSC MK 100 (designed and built by the automotive supplier Continental) is used in the F87.

M Dynamic Driving Experience

BMW M2 Coupe_127

In M Dynamic Mode (MDM) the control threshold of the brake interventions is expanded/raised and the engine power reduction by ASC is applied significantly later. This enables slight wheel spin and even drifts in certain situations. In our time at the track the thresholds seem similar to the new M3/M4 and a little less aggressive than in the 1M.

The driving experience switch has 3 modes.

  • COMFORT
  • SPORT
  • SPORT +

The following systems are influenced by the 3 modes:

  • Engine response
  • Engine speed adaptation
  • Load-reversal damping
  • Active Sound Design (ASD)
  • Electrical exhaust-flap controller • M DKG Drivelogic
  • M Servotronic EPS

The following states can be additionally activated by the DTC button:

  • DSC on
  • DTC on (M dynamic mode on) • DSC off

This table shows how the M2’s individual systems are influenced by the driving experience switch and the DTC button:

M2 settings

With the M double-clutch transmission, the following modes are additionally influenced by the driving experience switch and the DTC button.

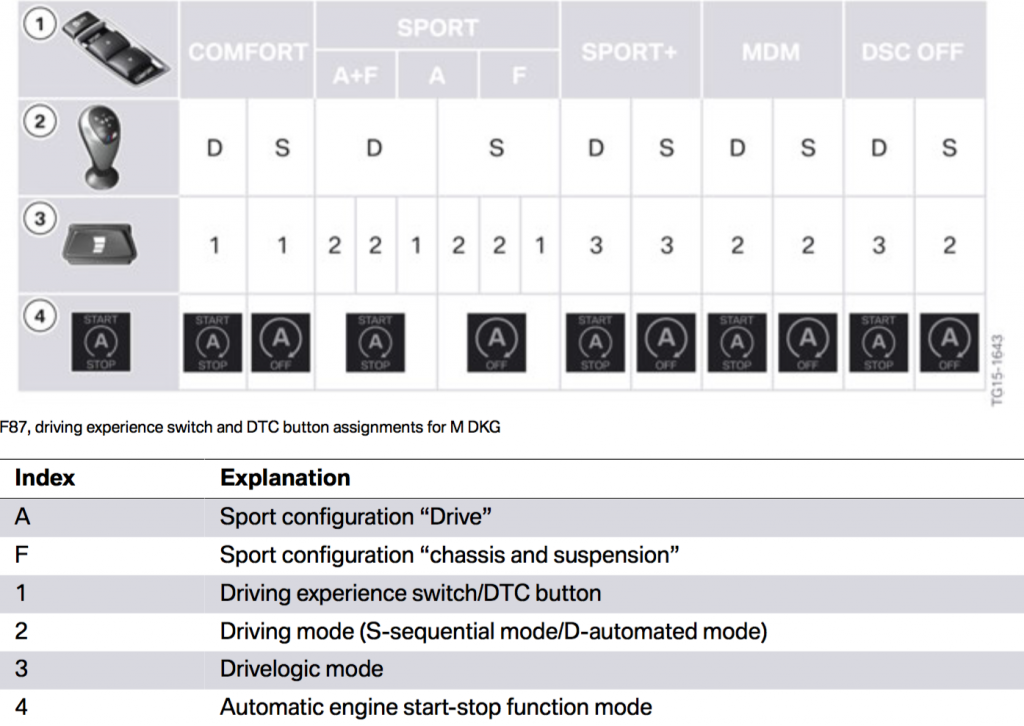

M2 settings DCT

And yes, in case you were wondering the M2 does indeed have Active Sound which transmits synthesized engine sound into the cabin. For further info on active sound check out our previous look at the technology.

BMW M2 History_037

Conclusions

The BMW M2 is slightly more of a baby M4 than a follow-up to the 1M. Its increased rear track width, higher steering ratio and EPS system gives the car a a little less on-edge/raw feel. Furthermore the longer wheel base and increased weight (154 lbs) means that the M2 doesn’t feel quite as nimble as the 1M. Yet the performance on the road has been improved with more confidence at the limit, higher engine performance and a much improved grip threshold. And on the track, the M2 is almost on another planet in terms of lap times.

Perhaps best of all this is a car that comes fairly loaded for the price of a E46 M3 when new. And that’s with substantially more performance, higher fuel economy and many more technology and convenience features. As we said in our initial review of the M2, it feels more like a follow-up to the E46 M3 in size and overall attitude than a successor to the 1M. And considering how revered that car has become, that is a very good thing.

M2_0350
