A lot has changed in the seven years that the E92 was released onto a power hungry world. We are in a new world where the demands of efficiency seemingly trump all. Forced induction, electric power steering and ever increasing curb weight seem to be expected. But with the F80 M3 and F82 M4 BMW M have created something that both aligned with the times as well as going back in time.
The new M4 is a twin turbo inline powered monster with 425 horsepower from 5,500 – 7,300 rpm, 406 lb-ft of torque from 1,850 – 5,500 rpm, and capable of 0-60mph in 3.9 seconds (w/M-DCT transmission – 4.1 seconds with standard 6-speed manual). But like the best M cars the new M3/M4 isn’t dominated by the engine. In fact on paper it’s the chassis and lightweight design that raise eyebrows the most. Weight of the M4 is down to just 3300 lbs with the M3 weighing just 50 lbs more at 3350. How does that compare to the E90/E92 M3? That’s around 400 lbs lighter than the previous generation. Hell that’s only 4 lbs heavier than the 1M.
Then there’s the air and the management of it. Like the 1M the new M3/M4 have the Air Curtain elements in the front. But that’s just the start. Combining the Air Curtain, M gills with integrated Air Breather rearwards of the front wheels minimize turbulence in the front wheel arches. “The way in which we channel the inflowing air through the engine oil cooler creates a Venturi effect, which reduces front axle lift and, in so doing, improves the steering,” explains Albert Biermann, Head of Development BMW M GmbH. Elements like the Air Curtain and M gills with integrated Air Breather rearwards of the front wheels minimize turbulence in the front wheel arches.
The new M3 and M4. More power with added lightness. Read on for all the details.
Official Release: BMW today announced the all-new BMW M3 Sedan and BMW M4 Coupe models, which capitalize on the strengths of the latest 3 Series Sedan and fresh 4 Series Coupe models as their respective foundations. As the first-ever BMW M cars to feature the achievement of an engineered-in reduction in curb weight from one generation to the next, the all-new M3 and M4 stand poised to attack corners, hills, and braking zones, and will vigorously defend BMW M’s decades-strong position as segment leader around the world.
Featuring a return to the inline-6 engine format made famous by BMW M, the all-new, 3.0-liter BMW M3 and M4 engine is approximately 10 kilograms lighter than its V-8 predecessor and packs an even stronger punch. With 425 horsepower from 5,500 – 7,300 rpm, 406 lb-ft of torque from 1,850 – 5,500 rpm, and capable of 0-60mph in 3.9 seconds when equipped with the M-DCT transmission (4.1 seconds with standard 6-speed manual), the all-new BMW M3 Sedan and BMW M4 Coupe will debut at the 2014 North American International Auto Show in Detroit, and will begin sales as 2015 models in early Summer, 2014 (Editor’s notes: All specifications preliminary. Complete US-specific specs, pricing, options, and packages will be announced closer to the on-sale date).
The launch of the new BMW M3 Sedan and new BMW M4 Coupe sees BMW M GmbH revealing a new interpretation of the high-performance sports car – and carrying the BMW M philosophy over into the fifth generation of the M3. More than 40,000 examples of the fourth-generation BMW M3 Coupe were built, and now the BMW M4 Coupe is poised to continue this success story. The “M4” badge is a reference to the model series that provides the basis for the new M model – and, for the first time, the Coupe will be introduced at the same time as the four-door variant. Logic dictates the latter will be christened the BMW M3 Sedan.
“Four generations of the BMW M3 have blended motor sport genes and uncompromised everyday usability within an emotionally rich overall concept,” explains Dr Friedrich Nitschke, President BMW M GmbH. “The BMW M3 Sedan and BMW M4 Coupe represent an ongoing commitment to this philosophy. The engine is the heart of every M model, and the new turbocharged six-cylinder unit fitted in the two new cars combines the virtues of a high-revving naturally aspirated unit with the strengths of turbocharger technology. A committed lightweight design concept produces a weight saving of around 80 kilograms over the outgoing M3. The BMW M3 and BMW M4 take motor sport technology from the track to the road, and thousands of laps of the legendary Nürburgring Nordschleife – the world’s most exacting race track – have readied the new models for that transition. Meticulous and passion-fuelled development work has underpinned the creation of two high-performance sports cars that set new standards in terms of overall concept, precision and agility.”
The high-revving, inline-6 engine with M TwinPower Turbo technology freshly developed for the new BMW M3 Sedan and new BMW M4 Coupe produces a maximum output of 425 hp. Its peak torque of406 lb-ft is available across a wide rev band and outstrips the figure recorded by the outgoing BMW M3 by roughly 40 percent. And yet the engine also achieves a reduction in fuel consumption and emissions of nearly 25 percent. Both the BMW M3 Sedan and BMW M4 Coupe cover the sprint from 0 to 60 mph in 4.1 seconds with the standard 6-speed manual transmission and even 3.9 seconds with the optional 7-speed M Double Clutch Transmission.
In the interests of maximizing dynamic ability and ensuring excellent efficiency, weight savings of around 80 kilograms have been achieved over a comparably equipped predecessor model. The BMW M4 Coupe, for example, has a DIN curb weight of 1,497 kilograms, thanks to the rigorous application of intelligent lightweight design measures. These include the increased use of lightweight materials such as carbon-fiber-reinforced plastic (CFRP) and aluminum for a number of chassis and body components. Indeed, both models feature a carbon roof.
One of the primary objectives in the development of the BMW M3 Sedan and BMW M4 Coupe was to ensure the new cars offered impressive race track capability. Hence the presence of a track-specification cooling system, which ensures that the optimum temperature balance for the engine, turbochargers and transmission is maintained at all times.
In order to accentuate the racing character of the two models in terms of both their technical composition and the fine-tuning of the cars, the engineers worked closely with BMW Motorsport’s professional racing drivers during the development phase. For example, DTM drivers Bruno Spengler and Timo Glock took part in the extensive testing and set-up work carried out at the Nürburgring-Nordschleife circuit.

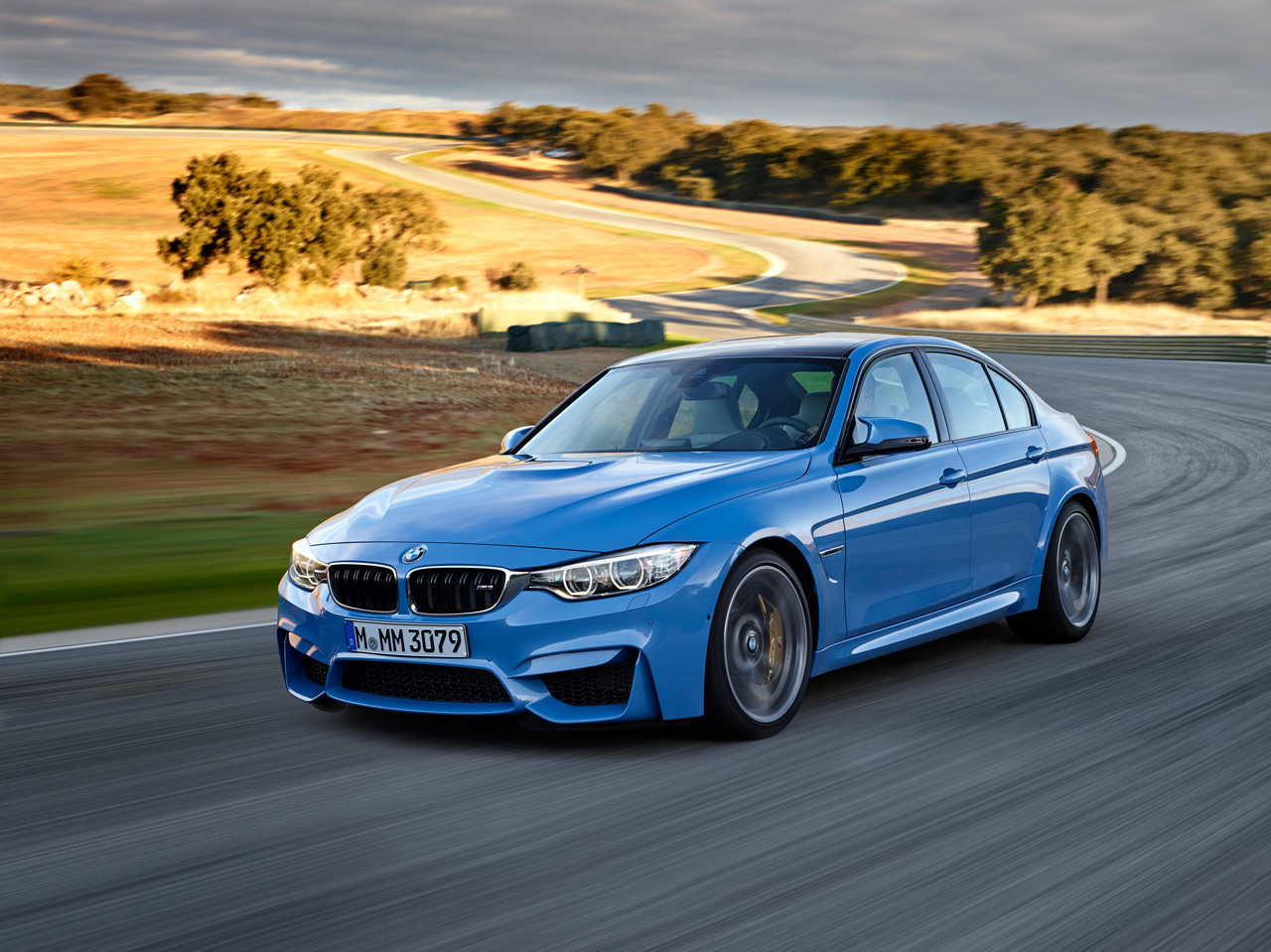

Low-slung and broad-set, the new BMW M3 Sedan and new BMW M4 Coupe share a finely balanced stance on the road. Indeed, the M-specific design of the two high-performance sports cars underlines their performance capability. Large air intakes and Air Curtains at the front end, exposed carbon-fiber-reinforced plastic (CFRP) and aluminum body components, and the diffuser at the muscular rear end are not merely design flourishes; they also fulfill functional roles in terms of aerodynamics, cooling and weight saving.
Numerous aerodynamics measures integrated into all areas of the body.
The aerodynamics concept of BMW M GmbH models has always been one of the key elements in their development. The engineers need to channel the air around the car to create the best possible platform for dynamic excellence, while also ensuring the engine, powertrain and brakes receive the requisite cooling even when operating under heavy loads on the race track.
Details such as the powerfully formed front apron, smooth underbody and clearly defined Gurney spoiler at the rear of the M3 Sedan (or integrated spoiler lip at the rear of the BMW M4 Coupe) reduce lift by an equal degree at the front and rear axle and produce optimum handling attributes. “The way in which we channel the inflowing air through the engine oil cooler creates a Venturi effect, which reduces front axle lift and, in so doing, improves the steering,” explains Albert Biermann, Head of Development BMW M GmbH. Elements like the Air Curtain and M gills with integrated Air Breather rearwards of the front wheels minimize turbulence in the front wheel arches. Together with the aerodynamically optimized exterior mirrors in twin-stalk style, they are also highly distinctive design features of the BMW M3 Sedan and BMW M4 Coupe and help reduce drag. These examples underline in familiar fashion the success of M engineers in reconciling the requirements of everyday use with the demands of action on the race track.
Sophisticated cooling concept for maximum performance.
The exceptional performance potential of the BMW M3 Sedan and BMW M4 Coupe places extremely exacting demands on temperature management in the engine and peripheral assemblies. In order to ensure optimum operating temperatures in everyday use, on short journeys around town and out on the race track, the BMW M GmbH engineers have developed an extremely effective cooling system. For example, alongside the two ultra-dynamic turbocharger units, the air intake system of the six-cylinder engine also includes an indirect intercooler, maximizing charge pressure and engine output. As well as a main radiator, the track-ready cooling concept also comprises a water cooler repositioned to the side for the high- and low-temperature water circuits, and the engine and transmission oil (if the M Double Clutch Transmission is specified). These ensure a consistent temperature balance and therefore high performance on the track as well as the road. An additional electric coolant pump cools the turbocharger bearing mounts when the car is stationary.
6-speed manual gearbox with throttle blipping.
The engine’s power is transferred to the road via a standard six-speed manual gearbox with robust double-plate clutch. This unit is considerably more compact than its predecessor and 26.4 lbs lighter. As a means of increasing shift comfort, the manual gearbox uses innovative new carbon friction linings in its synchronizer rings. Dry sump lubrication provides an efficient supply of oil to all parts of the engine. The gearbox blips the throttle on downshifts – previously a feature reserved for the M Double Clutch Transmission. This engagement speed control function improves the smoothness of the transmission, helps to enhance stability and was originally developed by motor sport engineers.
7-speed M Double Clutch Transmission with Drivelogic with Launch Control.
The third generation of the M-DCT sees the M engineers once again setting the benchmark in terms of power and race track capability without having to compromise on everyday usability. The optional 7-speed M Double Clutch Transmission with Drivelogic prompts the new high-revving turbocharged engine into emotionally impressive feats. As well as changing gear automatically, in manual mode the transmission enables ultra-fast gear changes with no interruption in the flow of power. The integrated Launch Control function ensures optimum sprinting performance off the line, producing acceleration figures that would be out of range with the manual gearbox. Stability Clutch Control opens the clutch when the car is understeering to bring it back into line. And M-DCT also includes functions like the Drivelogic modes that can be selected by the driver to give the BMW M3 and BMW M4 more comfortable, more economy-focused or even sportier characteristics. The additional seventh gear over the manual gearbox allows longer gear ratios – and delivers the efficiency gains you would expect as a result.
The properties of the extremely light yet impressively durable material CFRP have allowed the engineers to follow a fundamentally new approach in the manufacture of the drive shaft. Made from CFRP, this component feeds the engine’s torque from the gearbox to the rear differential and works under extremely heavy loads – especially in high-performance vehicles. “The impressive stiffness and low weight of the CFRP tubing allow the drive shaft to be constructed as a single-piece unit with no center bearing. As well as a weight saving of 40 percent over its predecessor, we have achieved a reduction in rotating masses and therefore improved drivetrain dynamics,” explains Albert Biermann.
Even more accomplished rear-wheel drive with Active M Differential.
Among the other components that add fresh polish to the dynamic repertoire of the BMW M3 Sedan and BMW M4 Coupe are the hollow lightweight output shafts of the rear differential and the Active M Differential, which uses an electronically controlled multi-plate limited-slip differential to optimize traction and directional stability. The multi-plate limited-slip differential works with extremely high precision and speed. Its control unit links up with the DSC (Dynamic Stability Control) system and also takes into account the position of the accelerator pedal, the rotational speed of the wheels and the car’s yaw rate. Every driving situation is therefore precisely analyzed and an impending loss of traction on one side of the car identified at an early stage. The degree of lock – which may be anywhere between 0 and 100 percent – is adjusted as required within a fraction of a second, enabling wheel spin to be prevented on slippery surfaces, in instances where the right and left rear wheel have widely differing friction coefficients, in tight bends and when changing direction with particular vigor. Optimizing traction in this way also provides unbeatable driving stability in challenging conditions and allows impressively dynamic acceleration out of corners.
M Dynamic Mode – a sub function of the Dynamic Stability Control (DSC) system – quenches the thirst of enthusiastic drivers for keen dynamics. While DSC intervenes as required to counteract understeer and oversteer, M Dynamic Mode allows greater wheel slip and therefore easy drifting. Owners with a taste for sporty and dynamic driving will appreciate this breadth to the cars’ handling, although DSC will still step in if the car ventures over the limits – unless it is switched off completely. Whichever setting the driver chooses, he or she remains responsible for the car’s stability.
The core expertise of BMW M GmbH resides in developing M cars that offer impressive steering precision, on-the-limit adjustability, agility and driving feeling, together with unbeatable traction and outstanding directional stability – all without neglecting everyday usability. In order to achieve these aims with the significantly increased performance capability of the new BMW M3 Sedan and new BMW M4 Coupe, the axles of the outgoing BMW M3 have been redesigned with painstaking attention to detail.
Here again, low weight and a high level of rigidity for the axle systems are essential ingredients in ensuring the cars provide an ultra-dynamic driving experience. In the double-joint spring strut front axle alone, the use of a lightweight aluminum construction for components such as control arms, wheel carriers and axle subframes saves five kilograms over a conventional steel design. Play-free ball joints and elastomeric bearings developed specially for the BMW M3 Sedan and BMW M4 Coupe ensure an optimum and direct transfer of forces both laterally and longitudinally. An aluminum stiffening plate, CFRP front strut brace and additional bolted joints between the axle subframe and the body structure all help to increase the rigidity of the front end.
Also lighter than the construction in the outgoing BMW M3 is the new five-link rear axle. All the control arms and wheel carriers are manufactured using forged aluminum, which reduces the unsprung masses of the wheel-locating components by around three kilograms compared with the previous model generation. The rigid connection between the rear axle subframe and the body – without the use of elastic rubber elements – is borrowed from motor sport and serves to further improve wheel location and therefore directional stability. “The double-elastic mounting for the rear differential within the rear axle subframe – which is bolted to the body structure – has allowed us to achieve a new level of driving precision, but without neglecting comfort,” says Albert Biermann, citing another example of the perfect symbiosis of pure-bred motor sport technology and excellent everyday usability.
The development of the tires for the cars was incorporated into the construction process for the axles from the outset. For high-performance sports cars like the BMW M3 Sedan and BMW M4 Coupe, in particular, steering feel and precision are the foremost considerations in the development of tires for the front axle, alongside lateral stability and braking forces. At the rear axle, meanwhile, traction, lateral stability and directional stability take center stage. For this reason, both cars will leave the factory on low-weight 18-inch forged wheels (front axle: 9 J x 18, rear axle: 10 J x 18) with mixed-size tires (front axle: 255 mm, rear axle: 275 mm). 19-inch wheels and tires are available as an option. The specially developed forged wheels make a significant contribution to the reduction in the cars’ unsprung masses and, in turn, to the optimization of dynamic qualities and efficiency. The experienced M engineers have taken great care to ensure all the components between the steering wheel and tires work together harmoniously and therefore provide maximum driving precision and lateral stability, along with good ride comfort.
Unique Electric Power Steering with three settings.
The electromechanical steering system in the new BMW M3 Sedan and new BMW M4 Coupe represents a new development from BMW M GmbH and the critical component in the link between driver and car. It offers the gifts of direct steering feeling and precise feedback. The integrated Servotronic function electronically adjusts the level of steering assistance according to the car’s speed, providing optimum steering characteristics at all speeds. The steering for the BMW M3 Sedan and BMW M4 Coupe also offers the driver three settings as standard, which can be selected at the touch of a button. COMFORT, SPORT and SPORT+ modes allow the level of steering assistance to be adapted to suit the situation at hand and the driver’s personal tastes.
“Together, the rigid front and rear structures, precise axle kinematics and an impressively responsive electromechanical power steering system help to deliver the outstanding steering and handling characteristics of the BMW M3 Sedan and BMW M4 Coupe,” sums up Biermann.
The optional Adaptive M suspension likewise comes with COMFORT, SPORT and SPORT+ modes, enabling the driver to choose between a more comfortable damper setting for urban driving, for example, a stiffer set-up for dynamic driving on country roads, and a third option that minimizes body movements and maximizes dynamic performance for use on the track.
With their supreme dynamic attributes in mind, the BMW M3 Sedan and BMW M4 Coupe also come as standard with BMW M compound brakes boasting impressive feel, outstanding stopping power and high resistance to fade. Far lighter than conventional equivalents, these brakes contribute to a substantial reduction in unsprung masses and therefore help to enhance dynamic performance. Even lighter BMW M carbon ceramic brakes can also be specified as an option, their further optimized performance attributes equipping them even more effectively for track use and giving them even greater durability.
The new inline-6 M engine: High-revving, turbocharged unit combines the best of both worlds.
The new BMW M3 Sedan and new BMW M4 Coupe from BMW M GmbH see a return to a six-in-line engine configuration, as used on the second and third generations of this iconic sports car. “When developing a new model we first think about what requirements the vehicle will be expected to meet, and then decide which concepts and technologies will best meet these goals,” says Albert Biermann. The new turbocharged engine combines the best of both worlds – reaching a maximum 7,600 rpm, it is unusually high-revving for a turbocharged engine, resulting in linear power delivery over a wide engine speed range and a soulful engine note, while M TwinPower Turbo technology ensures that peak torque is on top over a broad rpm range. A further hallmark of this engine is its outstanding efficiency.
The new engine sees a slight power upgrade over the previous V-8 to 425 hp, which is delivered between 5,500 and 7,300 rpm. Peak torque has been increased by roughly 40 percent to 406 lb-ft, and is maintained over a very wide rev band (1,850–5,500 rpm). The standard sprint from zero to 60 mph takes the new BMW M3 Sedan and new BMW M4 Coupe 4.1 seconds respectively. Equipped with the 7-speed M Double Clutch Transmission, this number even falls to 3.9 seconds. Top speed is 250 km/h / 155 mph (electronically limited), The new engine also boasts excellent fuel efficiency: the BMW M3 Sedan and BMW M4 Coupe achieve consumption nearly 25 percent better than the previous model’s figures. Regulated pollutant emissions are EU6-compliant.
Instantaneous response, courtesy of M TwinPower Turbo technology.
The M TwinPower Turbo technology comprises two fast-responding mono-scroll turbochargers, High Precision Direct Petrol Injection, Valvetronic variable valve timing and Double-VANOS continuously variable camshaft timing. Valvetronic and Double-VANOS work in tandem to seamlessly control intake valve lift. The result is smooth and efficient power delivery, very sharp response and reduced fuel consumption and emissions.
The six-cylinder engine features a closed-deck crankcase design which is very rigid and allows cylinder pressures to be increased for improved power output. And instead of liners, the cylinder bores feature a twin-wire arc-sprayed coating, which results in a significant reduction in engine weight.
A further technical highlight is the forged, torsionally rigid crankshaft which, as well as providing increased torque-carrying capacity, is also lighter in weight. This significantly reduces rotating masses, resulting in improved throttle response and acceleration.
Track-ready engine oil supply system for outstanding performance.
On the track, the exceptional driving dynamics of the BMW M3 Sedan and BMW M4 Coupe place extra demands on the engine oil supply system, whose design reflects the extensive motor sport experience of BMW M GmbH. The low-weight magnesium oil sump, for example, features a special cover to limit movement of the oil under the effects of strong dynamic lateral acceleration. Under extreme longitudinal acceleration and deceleration, an oil extraction pump and a sophisticated oil return system situated close to the turbocharger likewise help to maintain stable oil circulation. Oil is therefore supplied continuously to all engine components in all driving situations – whether in everyday motoring or during hard driving on the track.
An engine sound in keeping with the motor sport attributes of the BMW M3 and BMW M4 is provided by an innovative flap arrangement in the twin-pipe exhaust system. The electrically controlled flaps just before the rear silencer minimize exhaust back-pressure and produce a BMW M sound which is striking and unmistakable over the entire engine speed range, as well as giving precise feedback on engine load. The different selectable drive modes, which offer drivers a choice of preconfigured, perfectly balanced vehicle set-ups, also feature different engine sound profiles.
Lightweight design across the board: Shedding weight in all the right places.
Intelligent lightweight design was a top priority in the development of the BMW M3 and BMW M4. The goal was to minimize curb weight in order to give both models outstanding driving dynamics and exemplary efficiency. These measures have delivered impressive results, giving the BMW M4 Coupe a DIN curb weight of 1,497 kilograms, around 80 kilograms lighter than a comparably equipped predecessor model – with benefits for driving dynamics and fuel consumption as well.
BMW M3 Sedan also features CFRP roof for the first time.
On the outgoing models, the CFRP roof was confined to the Coupe version. Now, for the first time, the four-door BMW M3 will get this striking design and functional feature as well. The CFRP roof brings weight savings of five kilograms (11 lbs) in the case of the BMW M3 Sedan and more than six kilograms (> 13 lbs) in the case of the BMW M4 Coupe. It also lowers the vehicle’s center of gravity, which has a positive impact on driving dynamics.
Made from aluminum rather than conventional steel, the front side walls and the hood (with power dome) make an important contribution to the models’ lightweight design concept, while at the same time improving axle load distribution.
On the BMW M4 Coupe, the contoured roofline with central channel continues into the trunk lid, emphasizing the even sportier personality of the new model. The newly developed trunk lid not only provides extremely effective tail end styling, its geometry is at the same time precisely tailored for optimized aerodynamics, while the use of carbon fiber and plastics makes for additional weight savings.
The new BMW M3 Sedan and new BMW M4 Coupe also feature a CFRP propeller shaft. The high rigidity and low weight of the CFRP tube mean that the propeller shaft can be produced as a single-piece component, without a center bearing. This achieves weight savings of 40 percent over the previous model and a reduction in rotating masses, which in turn results in more dynamic powertrain response.
The CFRP strut brace in the engine compartment is a further example of how all weight-saving measures on these vehicles have also been tailored to the improvement of driving dynamics. Weighing only 1.5 kilograms (3.3 lbs), the strut brace offers superior rigidity to a comparable aluminum component and at the same time plays a key part in the excellent steering response and precision of both vehicles.
The use of carbon in these models is a reminder that BMW is a global leader in high-strength, lightweight CFRP construction, and that it was BMW who brought out the first mass-production vehicle with a body consisting entirely of this material – the innovative BMW i3.
Development input from professional racing drivers: BMW works driver Bruno Spengler on the technical highlights.
When developing the new BMW M3 Sedan and new BMW M4 Coupe, the BMW M engineers could count not only on track-honed technologies, but also on the driving talent of experienced racers. For example, Bruno Spengler and Timo Glock, BMW Motorsport works drivers in the DTM Deutsche Tourenwagen Masters (German Touring Car Masters) series, took part in extensive testing and set-up runs on the Nürburgring-Nordschleife circuit.
“I’m proud to have made a contribution to the set-up work on these two cars,” says 2012 DTM champion Spengler, who also took third place in the 2013 series. “The suspension has a very sporty set-up, the feedback from the front axle is extremely direct, the grip at the rear axle is phenomenal and the engine performance is awesome. This is the ideal basis for our DTM car.”
Bruno Spengler on the six-in-line engine with M TwinPower Turbo technology:
“As a race driver, I’m very impressed by the instant, lag-free response from the two turbos as soon you step on the gas. This is a sensational feature of this engine which translates to more fun at the wheel and is perfect for sporty driving.”
… on the electronic power steering:
“The electronic power steering is very precise, and from my point of view as a race driver that’s very, very important. It responds instantly to inputs and provides excellent feedback.”
… on the rear axle:
“The rear axle has a very progressive locking action, due to the electronically controlled limited-slip differential, and generates huge amounts of grip. The electronic control system is configured so that when you lift off the gas going into corners, the differential opens up and the lock-up effect is reduced to zero, resulting in very eager turn-in. When you accelerate out of the corner again, the lock-up engages progressively all the way up to 100 percent full lock, for optimal traction.”
Design: Striking use of forms underlines standout performance capability.
The design of the new BMW M3 Sedan and new BMW M4 Coupe visualizes in eye-catching style the outstanding performance capability and impressive handling properties of the two new models. “The superior performance of the BMW M3 Sedan and BMW M4 Coupe should be obvious at first glance,” explains Karim Habib, Head of Design BMW Automobiles. “Indeed, the exterior design of the new BMW M3 and BMW M4 has a visual impact that elevates the BMW M design language to a new level of expression, highlighted by a purposeful character, emotional appeal and dynamic verve.”
The front end: the powerfully expressive face of BMW M.
Viewed from the front, the BMW M3 Sedan and BMW M4 Coupe stand out most prominently with their powerful contours and a strongly defined three-dimensionality, which lend them a powerfully expressive face. Characteristic design elements leave no doubt that these cars are the work of BMW M. There is the modern take on the twin headlight arrangement (with optional LED technology), for example, not to mention the distinctive twin-bar kidney grille with black painted grille bars – which reflect the design of the characteristic BMW M double-spoke wheels and bear the M logo – and the powerfully designed front apron with its trio of large intakes supplying cooling air to the high-performance engine and brakes. Among the other hallmark BMW M design features on display is the characteristic power dome on the hood, which hints at the potential of the brawny M TwinPower Turbo engine and creates space for the intercooler. And the striking exterior mirrors – with their suggested twin-stalk mounts – also demand particular attention, their design optimizing the aerodynamics of the new BMW M3 Sedan and new BMW M4 Coupe.
The flanks: low-slung silhouette and dynamic lines.
The sides of both cars extend the dynamic impression created by their respective front ends. The hallmark BMW proportions of a long hood, long wheelbase, set-back glasshouse and short front overhang are lent further emphasis by familiar M design elements. “The muscular wheel arches and eye-catching surface forms clearly underline the dynamic potential of the BMW M3 and BMW M4,” adds Habib.
Those dynamics-accentuating details include likewise newly designed M gills, which perform both a stylistic and a functional role. Integrated into them are Air Breathers, which team up with the Air Curtains in the front apron to help optimize the airflow around the wheel arches and therefore improve aerodynamics.
The dark color of the CFRP roof (with its contoured roofline) gives both models a lower-slung and more compact appearance, as the eye perceives the roof pillars – painted in body color – to be the uppermost point of the car. A flowing roofline lends the already sporting overall appearance of the BMW M3 Sedan and BMW M4 Coupe an extra elegance and finesse. The line gains in momentum once again as it heads rearwards, increasing aerodynamic downforce and giving the rear a more muscular look at the same time.
The rear: BMW M4 with spoiler integrated into the trunk lid.

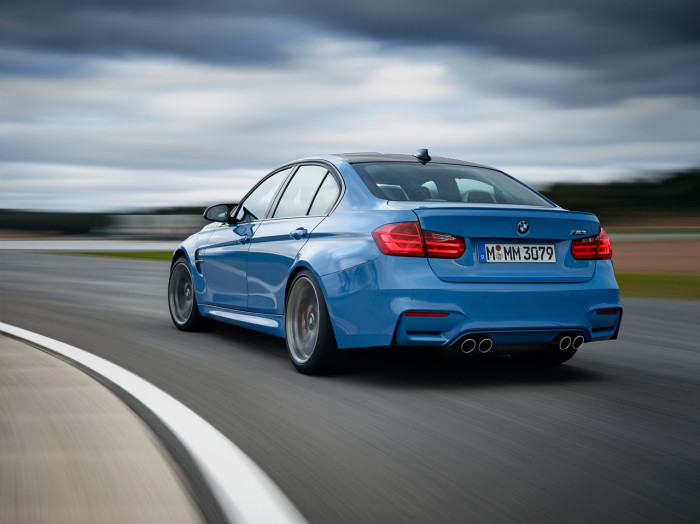

The design of the rear end displays striking differences in the two models. The BMW M3 Sedan, for example, is fitted with a Gurney spoiler to reduce lift, while the tailgate of the BMW M4 Coupe features an integrated rear spoiler and is made from particularly lightweight carbon-fiber-reinforced plastic. As well as performing a functional aerodynamic role, the tailgate also contributes significantly to the BMW M4’s standalone design. Indeed, the pair of lines which begin life flanking the power dome in the hood – and score a clearly defined path over the CFRP roof – complete their journey in the trunk lid.
A shared feature of the two models is the prominently flared rear wheel arches which, in combination with the wide track, underline the confident appearance of the BMW M3 and BMW M4. A characteristic BMW M detail of the rear end are the high-gloss polished, now slanting pair of twin exhaust tailpipes, which are framed like jewels by the sculptural rear apron with its integrated diffuser.
The interior design: flawless ergonomics in a sporting ambience.
Climbing into the BMW M3 and BMW M4, drivers will be greeted by the interior architecture familiar from the BMW 3 Series and BMW 4 Series, complete with unimpeachable ergonomics and clear driver focus. In keeping with the character of the two models, however, the interior fulfils an even more sharply defined sporting brief. To this end, the host of traditional BMW M equipment details includes M door sill finishers, an M driver’s footrest, M gearshift lever, M-design circular instruments with white graphics, M leather steering wheel with chrome trim, color contrast stitching and electroplated-look shift paddles (if the M-DCT gearbox is specified).
The front seats also represent an evocative expression of BMW M’s motor sport genes. Taking visual inspiration from the bucket seats fitted in racing cars, the seats feature a full-size single-piece back panel. This means the construction of the seats is very flat, while the high, width-adjustable side bolsters and low-set seat surface allow an ideal seating position and provide excellent support. Despite their undeniably sporty design, the BMW M sports seats can be equipped with comfort-enhancing features including electric adjustment and heating. On the seat surface, the stitching, upholstery segmentation and perforation lend the seats a slim-fitting feel. Illuminated for the first time, the BMW M logo on the seat backrests adds a new and exclusive highlight.
Equipment: Extensive standard equipment joined by a host of options that enhance dynamics and comfort.
The new BMW M3 Sedan and new BMW M4 Coupe leave the factory with a thorough selection of equipment on board which reflects their character as extremely performance-oriented cars offering excellent everyday usability. In addition, customers can choose from an extensive range of optional equipment to give the high-performance sports cars an even more uncompromising sporting edge or push their comfort levels to the maximum.
Carbon roof as a visible sign of the commitment to lightweight design.
The CFRP roof, which was fitted to the Coupe version only of the outgoing BMW M3, is a standard feature of both the new BMW M3 Sedan and the new BMW M4 Coupe. The “exposed” styling of the carbon-fiber construction accentuates not only the exclusivity of the two models and their direct links to motor sport, it also emphasizes clearly the lightweight design philosophy underpinning the cars.
Other standard-fitted and exclusive exterior details include the lightweight hood with eye-catching power dome, the font side panels made from aluminum, the sculpted front apron with three large air intakes, the black double-bar kidney grille, the hallmark M exterior mirror casings, the rear apron with integrated diffuser, the exhaust system with four tailpipes, and the trunk lid with fitted Gurney on the BMW M3 or the aerodynamically shaped lightweight tailgate with integrated spoiler of the BMW M4. Both models come as standard with forged 18-inch BMW M light-alloy wheels with mixed-size tires. Forged 19-inch light-alloy wheels with mixed-size tires can be ordered as an option, in either Ferric Grey or Black.
Interior with exquisite materials and motor sport ambience.
The BMW M3 and BMW M4 also stand out with an interior that is exclusive and functional in equal measure. For example, the M Sport leather multifunction steering wheel is fitted as standard, as are bucket-style M sports seats and the BMW Individual roof liner in Anthracite. Like the front seats, the distinctively contoured backrests of the rear seats also offer exceptional lateral support. They are made from a lightweight composite material and can be folded in a 60:40 split. This gives the BMW M3 and BMW M4 a degree of variability and everyday usability that is well beyond the norm for high-performance sports cars of their level.
Drivers of the BMW M3 and BMW M4 can look forward to piloting their car from behind a double-spoke M leather steering wheel. The M logo, chrome trim and color contrast stitching are central elements of the cabin’s racing ambience. Both models come as standard with a six-speed manual gearbox, while the 7-speed M Double Clutch Transmission is available as an option. M-DCT allows the driver to change gears using either the selector lever on the center console or the shift paddles mounted on the steering wheel.
Innovative driveline and chassis technology deliver unbeatable dynamics.
The optional M-DCT Drivelogic changes gear with no interruption in the flow of power, enabling it to reduce shift times, while a Launch Control system optimizes acceleration off the line.
The standard-specification Active M Differential at the rear axle guarantees optimum traction, while the likewise factory-fitted electromechanical M Servotronic steering with three settings delivers sporty, direct responses. Both the new BMW M3 and new BMW M4 are equipped as standard with BMW M compound brakes, but customers can also order their car with even lighter and more effective BMW M carbon ceramic brakes, which come with the additional visual highlight of gold-painted calipers.
Optional add-ons for comprehensive driver information.
BMW has developed a free BMW M Laptimer app, which allows owners to analyze their personal driving style. Once their smartphone is hooked up to the BMW – via USB cable or the car’s snap-in adapter – customers can operate the BMW M Laptimer app easily using the iDrive Controller. The app then gets to work without delay, recording the car’s speed, longitudinal and lateral acceleration, engine revs, the gear engaged (if the M-DCT or automatic gearbox is specified), steering angle, accelerator position and fuel consumption. That means, when the data is subsequently analyzed via graphic displays on the customer’s smartphone, the driver’s reactions can also be assessed. Another feature allows two recordings on the same track to be compared corner-by-corner. The readings used here can be either the driver’s own or data shared via email.
The BMW M3 Sedan and BMW M4 Coupe are also available – needless to say – with the wide variety of driver assistance systems and mobility services introduced under the BMW ConnectedDrive banner, some of which will already be familiar from the BMW 3 Series and BMW 4 Series. Among the highlights are a new generation of the Navigation system Professional, offering extra capability, sharper graphics and 3D elements for the map display, Active Driving Assistant, which warns the driver of a looming collision with a pedestrian, and the adaptive full LED headlights, The optional Head-Up Display in the BMW M3 and BMW M4 comes with additional, M-specific functions such as a gear display, rev counter and Optimum Shift Indicator.
Production: Return to the birthplace of the BMW M3.
It was at the Preußenstraße headquarters of BMW Motorsport GmbH in Munich 28 years ago that the company’s then managing director Paul Rosche developed the idea for the BMW M3. Production began just a few months later at the original BMW plant next door. A total of 17,970 units of the first-generation BMW M3 were built here up to 1991. And now, almost 23 years later, production of the iconic sports car – long since guaranteed legendary status – is returning to its birthplace. BMW Plant Munich will host production of the new BMW M4 Coupe, while the BMW M3 Sedan will be built at BMW Plant Regensburg, where 222,293 units of the second, third and fourth generations of the BMW M3 combined have been produced since 1992.
Full integration into the regular manufacturing process.
One of the reasons for the decision to split production of the BMW M3 and BMW M4 between the two facilities centered on the company’s commitment to integrating the two high-performance sports cars into the production processes for their respective donor models. For example, the BMW M4 will be built alongside models including the standard BMW 4 Series Coupe in Munich, and Regensburg is the venue for production of the BMW 3 Series Sedan as well as the new BMW M3. Among the benefits of “mixed” production on a shared line is that the plants can respond quickly to market fluctuations by making adjustments to unit figures as required. As well as efficient production planning and logistics, the essential ingredient in this approach is the single-line system: both M models will be built alongside their respective donor models on the same production line.
Intensive experience-sharing ensures a smooth production start-up.
This will be the first time the Munich plant has handled production of a lightweight design concept bringing together an aluminum hood and side panels, CFRP roof and lightweight tailgate in this combination. The bonding facility for the carbon roof in the paint shop is also new to Munich. The intensive sharing of experience with colleagues in Regensburg helps ensure that the employees in Munich maintain an outstanding level of manufacturing expertise when it comes to lightweight design technologies. Indeed, Plant Regensburg can call on many years of experience in lightweight design. As well as production of the outgoing generation of the BMW M3 with its carbon roof, the Regensburg factory has also been responsible for the manufacture of numerous BMW Motorsport touring cars built for race action.
Hall of fame: The evolution of an automotive legend over three decades.
The new BMW M3 Sedan and new BMW M4 Coupe represent the fifth generation of a pure-bred sports car offering excellent everyday usability – one which has raised the bar in the ultra-high-performance mid-size sedan/coupe segment at every turn over the last three decades. “The BMW M3 has been our iconic model in the high-performance sports car segment since 1985, when the company unveiled the first generation of the BMW M3 at the International Motor Show (IAA) in Frankfurt,” recalls Dr Friedrich Nitschke, President BMW M GmbH. “Today, 28 years later, the new BMW M3 Sedan and new BMW M4 Coupe are set to extend this tradition into a fifth generation and take the car’s unique combination of outstanding dynamics and unrestricted everyday usability to yet another new level.”
The first generation: forming the basis for the world’s most successful touring car.
In spring 1985, the BMW Motorsport department began development of a racing machine to line up in touring car competition. The road going version required for homologation – 5,000 examples of which had to be built for sale per year to satisfy the sporting regulations for this category of racing – was conceived from the outset as a race-ready Group A machine. The inaugural BMW M3 celebrated its premiere in September 1985 at the Frankfurt Motor Show (IAA), with the market launch following in summer 1986. Its naturally aspirated four-cylinder engine developed 143 kW/195 hp (version without catalytic converter: 147 kW/200 hp) from a 2.3-litre displacement, accelerated from 0 to 100 km/h / 62 mph in 6.8 s (6.7 s) and had a top speed of 230 km/h / 143 mph (235 km/h / 146 mph).
In this trim, the first-generation BMW M3 exceeded all sales expectations. Including the Convertible variant, the various evolution stages of the car and the special-edition models, BMW had sold a total of 17,970 units worldwide by the time production was wrapped up in 1991.
The second generation: three variants of a “wolf in sheep’s clothing”.
The successor to the original M3 was not designed as the basis for a racing car. However, it was developed from the outset in three body variants. The two-door Coupe, which made its debut in 1992, was followed onto the market in 1994 by a Convertible and – for the first time – a four-door Sedan. All three models were powered by a six-cylinder 3.0-litre engine developing 210 kW/286 hp, which powered the car to 100 km/h / 62 mph from a standstill in under six seconds. Top speed was electronically limited to 250 km/h / 155 mph. A small-series M3 GT variant was added to the range in 1994, its 217 kW/295 hp sending it straight to the top of the M3 performance scale at the time. In 1995 the car’s displacement was increased to 3.2 liters and output rose to 236 kW/321 hp.
In 1997 the BMW M3 became the world’s first volume-produced car to be made available as an option with the Sequential M Gearbox (SMG). This transmission variant was based on the conventional gearbox for the M3, but with a clutch that was activated electro-hydraulically to change gears. M3 drivers no longer needed to press a clutch pedal; all they had to do to change gear instantly on one level was pull or push the gearshift lever. Initial skepticism was defied by impressive success, and by the time production came to an end almost one in every two examples of this generation of the M3 generation was fitted with an SMG gearbox. The M3 had grown from a niche sports car to a resounding sales success: 71,242 units of the Coupe, Convertible and Sedan combined were produced at Regensburg.
Several design features of the second-generation BMW M3 also cemented their places in the driver’s consciousness. They included special light-alloy wheels in double-spoke design and the specially formed, aerodynamically optimized exterior mirror casings with their two wing-shaped struts. These highlights have been revisited time and again in subsequent generations of the M3 in the form of some fascinating design cues.
The third generation: enhanced dynamics in a sharper design.
The third generation of the BMW M3 – launched in 2000 and available in coupe or convertible form only – added another, now traditional, signature feature to the model: a power dome on the hood. The new model also raised the bar another not inconsiderable notch in terms of performance and dynamics. Its six-cylinder in-line engine still had 3.2-litre displacement, but now developed 252 kW/343 hp. And that meant the M3 could accelerate from 0 to 100 km/h / 62 mph in 5.2 seconds (Convertible: 5.5 s), should the occasion demand. Almost more impressive still, though, was the sprint from 80 to 120 km/h / 50 to 75 mph, which could be dispatched in a mere 5.4 seconds. Evidence of the six-cylinder engine’s exceptional pulling power could not have been provided any more emphatically.
For the first time, the BMW M3 now also came with a variable differential lock at the rear axle allowing anywhere between 0 and 100 percent lock. The results were noticeable benefits in terms of traction and grip when pulling away and cornering at pace. Added to which, the second generation of the Sequential M Gearbox (SMG II) now also allowed the driver to change gear using paddles on the steering wheel.
The sporting flagship of this M3 generation was the BMW M3 CSL introduced in 2003. The three-letter suffix stood for “Coupe Sport Lightweight”, a billing justified by elements such as a carbon-fiber roof, center console and door panels, a lighter rear window and the omission of numerous comfort-oriented features. With a curb weight of just 1,385 kilograms, it tipped the scales some 110 kilograms below the standard M3. All 1,383 units of the 265 kW/360 hp “cornering king” were sold within just a few months.
The fourth generation: V-8 engine and intelligent lightweight design.
2007 signaled a break with tradition as the BMW M3 took to the stage for the first time in 15 years without the straight-six unit so frequently crowned Engine of the Year. Instead, the fourth-generation car – which appeared in coupe, sedan and convertible form (the latter joined the range in 2008) – was powered by an eight-cylinder unit. The new 3,999cc engine developed 309 kW/420 hp and some 85 percent of its maximum 400 Newton meters (542 lb-ft) of torque was available across a huge 6,500 rpm rev range. The engineers continued along the path of lightweight design with the Coupe in particular. On the back of positive experience with other M models, the roof was once again made from carbon-fiber-reinforced plastic. The hood with its striking power dome was made from aluminum, as were large sections of the newly developed lightweight chassis.
Among the highlights of the fourth-generation car’s production run were the exclusive small-series variants of the BMW M3 which shone an even brighter spotlight on its racing-inspired characteristics. Here, the BMW M3 GTS – road-registered but developed for club sport racing – stood out in particular. The displacement of the standard M3’s V-8 engine was expanded to 4.4 liters to produce peak output of 331 kW/450 hp. Specially developed chassis components and aerodynamic measures, plus a two-seat cockpit conceived for track use, equipped this exclusive special-edition model (only available in show-stealing Fire Orange paintwork) for competitive action on the track and generated a particularly intense M feeling on the road. 135 examples of the BMW M3 GTS were delivered to customers.
The BMW M3 CRT (Carbon Racing Technology) presented in 2011 was limited to just 67 units. Exclusively manufactured lightweight components and modified chassis technology imbued this 331 kW/450 hp model, which was based on the BMW M3 Sedan and built at the BMW M GmbH factory, with exceptionally precise handling balance. The hood of the BMW M3 CRT was made from two CFRP moldings encasing an aramid honeycomb structure, its bucket seats featured two CFRP layers wrapped around a recycled-paper honeycomb, and a carbon layer made using conventional production technology was added to visible areas. A rear spoiler and an air-channeling element integrated into the front apron (both made from CFRP) rounded off the exclusive lightweight elements found on the BMW M3 CRT.
